Adjustment [06/2015 - ]: Procedure

  1. INSPECT HOOD SUB-ASSEMBLY

    See step  1

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 1 [11/2018 - ]

  3. ADJUST HOOD SUB-ASSEMBLY
    1. Horizontally and vertically adjust the hood.

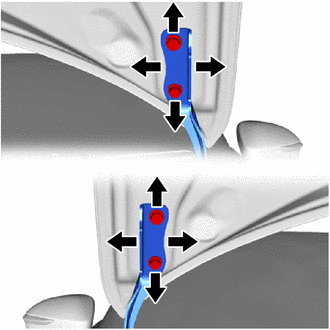

      GTY561914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Loosen the 4 hinge bolts of the hood.
      2. Adjust the clearance between the hood and front fender by moving the hood.
      3. Tighten the 4 hinge bolts after adjustment.

        Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

    2. Adjust the height of the front end of the hood using the hood bumper cushions.

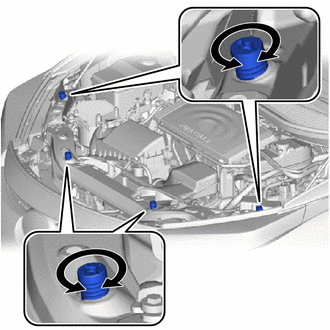

      GTY561913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Adjust the 2 hood bumper cushions so that the heights of the hood and fenders are aligned.
    3. Adjust the hood lock assembly.

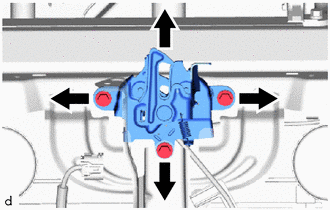

      GTY563619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Loosen the 3 bolts.
      2. Adjust the hood lock assembly and tighten the 3 bolts.

        Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  4. INSTALL COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 2 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 2 [11/2018 - ]
