Removal [06/2015 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 3

  4. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 4

  5. REMOVE INDOOR ELECTRICAL KEY OSCILLATOR
    1. Disconnect the connector.

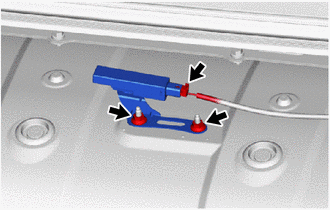

      GTY561838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and indoor electrical key oscillator.
      NOTE:

      Be careful when installing the indoor electrical key oscillator. If the indoor electrical key oscillator is dropped, replace it with a new one.
