Removal [06/2015 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

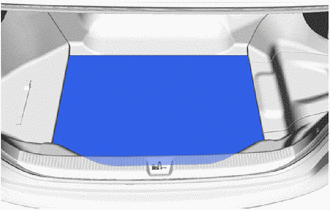

    1. Remove the luggage compartment floor mat.
      GTY579500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM HOOK

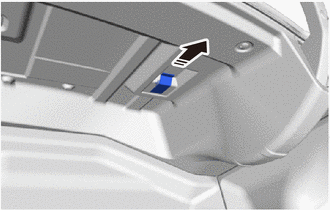

    1. Remove the No. 2 luggage compartment trim hook.
      GTY554037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

  4. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

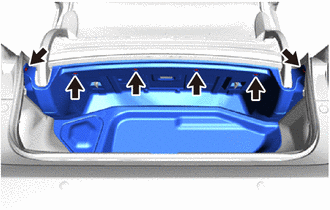

    1. Using a clip remover, remove the 6 clips and front luggage compartment trim cover.
      GTY579511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR FLOOR FINISH PLATE

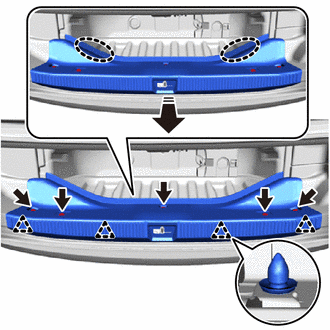

    1. Using a clip remover, remove the clips.
      GTY544192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
    2. Disengage the clips to remove the rear floor finish plate as shown in the illustration.
  6. REMOVE ROPE HOOK

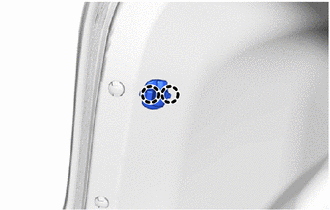

    1. Disengage the claws to remove the rope hook.
      GTY579508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH

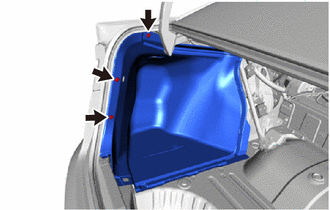

    1. Using a clip remover, disengage the clips to remove the luggage compartment trim cover assembly LH.
      GTY579506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FUEL LID WITH MOTOR LOCK ASSEMBLY

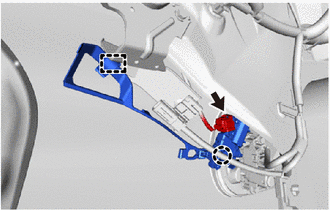

    1. Using a clip remover, disengage the clamp.
      GTY561623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
    3. Disengage the claw to remove the fuel lid with motor lock assembly.
