Removal [06/2015 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 4

  2. REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY

    Refer to PROCEDURE - Step 8

  3. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

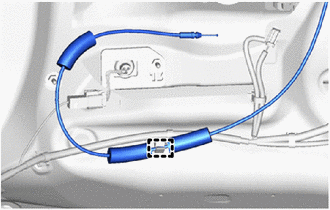

    1. Disengage the luggage door lock control cable sub-assembly from the clamp.
      GTY579552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

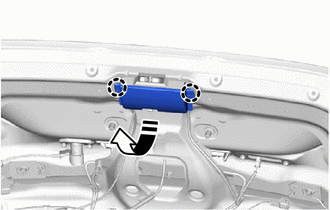

    2. Disengage the claws to open the cover as shown in the illustration.
      GTY554831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

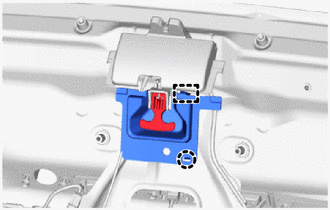

    3. Disengage the claw and guide to remove the luggage door lock protector.
      GTY595645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

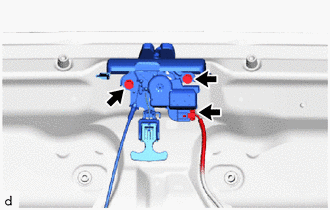

    4. Disconnect the connector.
      GTY563635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 bolts and luggage compartment door lock assembly.
  4. REMOVE LUGGAGE DOOR LOCK CONTROL CABLE SUB-ASSEMBLY
    1. Disengage the guide to remove the luggage door lock control cable sub-assembly from the luggage compartment door lock assembly.
      GTY563636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
