Removal [06/2015 - ]: Procedure

  1. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [06/2015 - ]

  2. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 12 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 12 [11/2018 - ]

  3. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

    Refer to PROCEDURE - Step 8 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 8 [01/2018 - 11/2018] , or refer to PROCEDURE - Step 8 [11/2018 - ]

  4. REMOVE REAR SEAT SIDE GARNISH

    Refer to PROCEDURE - Step 23 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 23 [11/2018 - ]

  5. REMOVE REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY

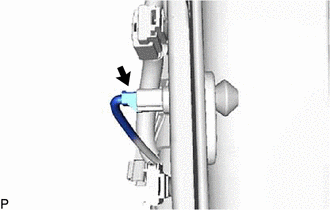

    1. Disconnect the connector.
      GTY607461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

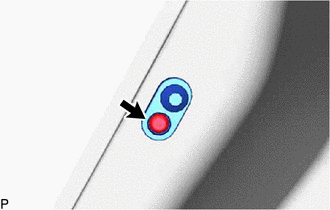

    2. Using a T30 "TORX" socket wrench, remove the screw and rear door courtesy light switch assembly.
      GTY582986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
