Removal [06/2015 - ]: Procedure

  1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 4 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 4 [11/2018 - ]

  2. REMOVE REAR DOOR ARMREST COVER

    Refer to PROCEDURE - Step 5 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 5 [11/2018 - ]

  3. REMOVE REAR NO. 1 DOOR STIFFENER CUSHION

    Refer to PROCEDURE - Step 6 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 6 [11/2018 - ]

  4. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 7 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 7 [11/2018 - ]

  5. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 8 [11/2018 - ]

  6. REMOVE REAR SPEAKER ASSEMBLY
    NOTE:

    Do not touch the cone parts of the rear speaker assembly.

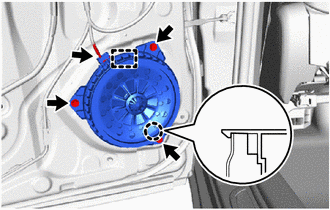

    1. Disconnect the connector.
      GTY556797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 screws.
    3. Disengage the claw and guide to remove the rear speaker assembly.
