Removal [12/2013 - 11/2016]: Procedure

Refer to PROCEDURE - Step 5

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 3 bolts and charcoal canister protector.

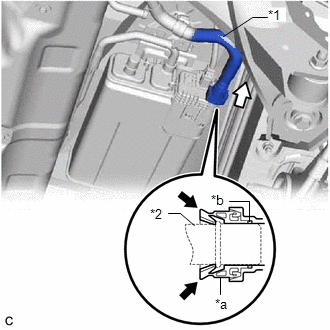

1. Disconnect the vent line hose from the canister (charcoal canister assembly).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Vent Line Hose	*2	Pipe (Canister (Charcoal Canister Assembly)
   *a	Retainer	*b	Tab
   *c	Tube Connector	*d	O-Ring
   	Pinch		Pull off

   NOTE:

   • Remove any dirt or foreign matter on the tube connector before performing this work.
   • Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connector has an O-ring that seals the pipe.
   • Perform this work by hand. Do not use any tools.
   • Do not forcibly bend, twist or turn the vent line hose.
   • Protect the disconnected parts by covering them with plastic bags after disconnecting the vent line hose.
   • If the tube connector and pipe are stuck, push and pull to release them.

   HINT:

   Do not remove the retainer

   1. Pinch the tabs of the retainer to disengage the lock claws and pull it down.
   2. Pull off the vent line hose.
2. Disconnect the air line tube from the leak detection pump sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Air Line Tube
   *2	Pipe (Canister (Charcoal Canister Assembly))
   *a	Tube Connector
   *b	O-Ring
   	Pinch
   	Pull off

   NOTE:

   • Remove any dirt or foreign matter on the tube connector before performing this work.
   • Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connector has an O-ring that seals the pipe.
   • Perform this work by hand. Do not use any tools.
   • Do not forcibly bend, twist or turn the air line tube.
   • Protect the disconnected parts by covering them with plastic bags after disconnecting the air line tube.
   • If the tube connector and pipe are stuck, push and pull to release them.
   1. Push the air line tube firmly toward the leak detection pump sub-assembly.
   2. Pinch the tube connector as shown in the illustration.
   3. Pull off the air line tube to the pipe (leak detection pump sub-assembly).

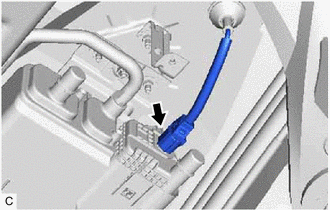

3. Disconnect the leak detection pump sub-assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Slide the clip and disconnect the purge line hose from the fuel tube.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

5. Remove the 3 nuts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

6. Disengage the clip from the vehicle body to remove the canister (charcoal canister assembly).

HINT:

Only perform this procedure when replacement of the leak detection pump sub-assembly is necessary.

1. Before removing the leak detection pump sub-assembly, clean the charcoal canister sub-assembly by blowing air into it to ensure that the charcoal canister sub-assembly is free of foreign matter.
   NOTE:

   • Make sure to clean the charcoal canister sub-assembly using air only.
   • Do not use gasoline, thinners or solvents.

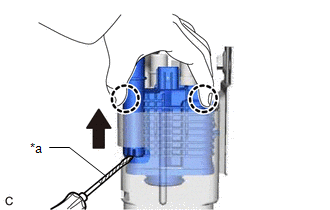

2. While disengaging the 2 claws as shown in the illustration, push the leak detection pump sub-assembly upwards using a screwdriver with its tip wrapped in protective to remove it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

3. Check if the charcoal canister sub-assembly contains foreign matter such as mud or water.
   1. Visually check that the inside of the charcoal canister sub-assembly is free of foreign matter.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   2. Hold the charcoal canister sub-assembly upside down to make sure that it is free of foreign matter.

      If the charcoal canister sub-assembly contains foreign matter, replace the canister (charcoal canister assembly).
