Removal [12/2013 - 11/2016]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FLYWHEEL HOUSING UNDER COVER

    Refer to REMOVAL [12/2013 - 11/2016]

  2. REMOVE DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT
    1. Turn the crankshaft to gain access to the removable locations of the 6 drive plate and torque converter assembly setting bolts and remove each drive plate and torque converter assembly setting bolt while holding the crankshaft pulley bolt with a wrench.
      GTY307646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      There will be one black colored drive plate and torque converter assembly setting bolt.

  3. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

    Refer to PROCEDURE - Step 63

  4. INSTALL ENGINE HANGERS

    Refer to PROCEDURE - Step 64

  5. REMOVE FRONT FRAME ASSEMBLY

    Refer to PROCEDURE - Step 69

  6. REMOVE WIRING HARNESS CONNECTOR

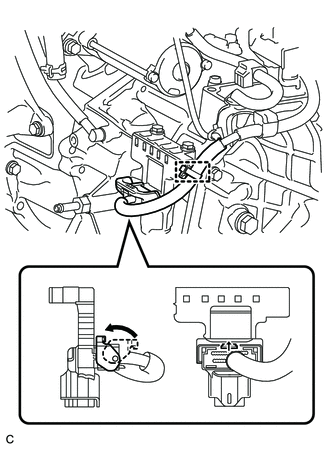

    1. Disconnect the wire harness clamp.
      GTY323374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the lock lever and disconnect the wiring harness connector.

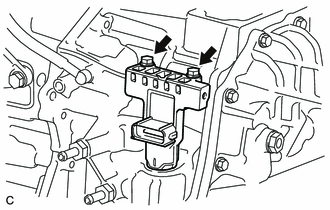

    3. Remove the 2 bolts from the wiring harness connector.
      GTY320902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

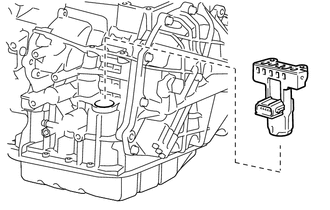

    4. Disconnect the wiring harness connector from the automatic transaxle assembly.
      GTY438514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT WIRE HARNESS

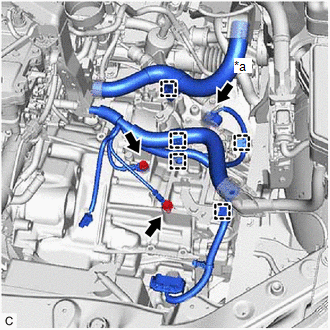

    1. Disconnect the park/neutral position switch connector.
      GTY446302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Park/Neutral Position Switch Connector
    2. Remove the 2 bolts and disengage the 5 clamps to disconnect the wire harness from the automatic transaxle assembly.
  8. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY
    1. Using the transmission jack attachment, set the automatic transaxle assembly on a transmission jack.
      NOTE:
      • Secure the automatic transaxle assembly to the transmission jack using a suitable adapter, such as a rope or attachment.
      • To prevent the automatic transaxle oil pan sub-assembly from deforming, do not place any attachments onto the automatic transaxle oil pan sub-assembly of the automatic transaxle assembly.
      • Hold the engine assembly with a suitable adapter, such as a rope, during the operation.

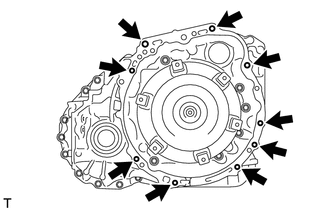

    2. Remove the 9 bolts and automatic transaxle assembly.
      GTY167641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      To prevent damage to the knock pins, do not pry between the automatic transaxle assembly and engine assembly.

  9. REMOVE TRANSMISSION OIL COOLER

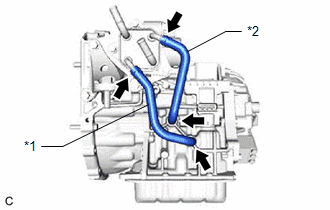

    1. Slide the 4 clips and remove the No. 1 oil cooler inlet hose and No. 1 oil cooler outlet hose.
      GTY442355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Inlet No. 1 Oil Cooler Hose
      *2 Outlet No. 1 Oil Cooler Hose

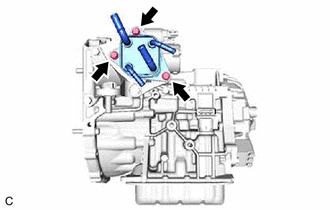

    2. Remove the 3 bolts and transmission oil cooler from the front engine mounting bracket.
      GTY455667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT ENGINE MOUNTING BRACKET

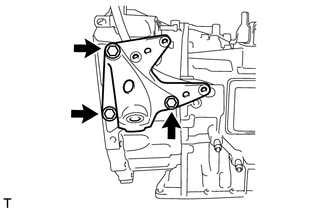

    1. Remove the 3 bolts and front engine mounting bracket from the automatic transaxle assembly.
      GTY320733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE WIRE HARNESS CLAMP BRACKET
    1. Remove the 4 bolts and 4 wire harness clamp brackets from the automatic transaxle assembly.
      GTY320732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 1 TRANSMISSION CONTROL CABLE BRACKET
    1. Remove the 2 bolts and No. 1 transmission control cable bracket from the automatic transaxle assembly.
      GTY319923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE TRANSMISSION CASE PLUG ASSEMBLY

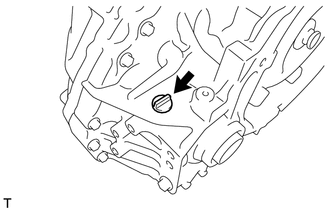

    1. Remove the transmission case plug assembly from the automatic transaxle assembly.
      GTY294697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the transmission case plug assembly.
  14. REMOVE TORQUE CONVERTER ASSEMBLY

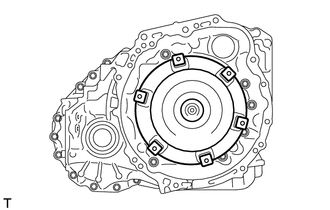

    1. Remove the torque converter assembly from the automatic transaxle assembly.
      GTY167635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Remove the torque converter assembly from the input shaft horizontally.

  15. INSPECT TORQUE CONVERTER ASSEMBLY

    Refer to PROCEDURE - Step 1

  16. INSPECT DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2
