Removal [12/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 8 , or refer to PROCEDURE - Step 8

  2. DRAIN ENGINE COOLANT

    See step  1 , or see step  1

  3. REMOVE COOLER CONDENSER ASSEMBLY

    Refer to REMOVAL [12/2013 - 11/2016] , or refer to REMOVAL [11/2016 - ]

  4. DISCONNECT NO. 1 RADIATOR HOSE

    See step  8

  5. DISCONNECT NO. 2 RADIATOR HOSE
    1. Slide the clip and disconnect the No. 2 radiator hose.
      GTY454731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DISCONNECT RADIATOR RESERVE TANK HOSE

    See step  9

  7. REMOVE RADIATOR ASSEMBLY
    1. Remove the radiator assembly with the fan shroud assembly from the 2 lower radiator supports.
    2. Remove the 2 lower radiator supports from the vehicle body.
    3. Remove the 2 radiator supports from the radiator assembly.

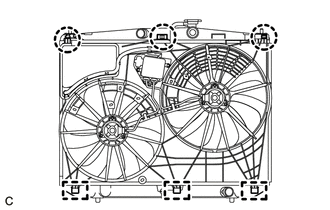

    4. Disengage the 3 claws.
      GTY454643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 3 guides to remove the fan shroud assembly from the radiator assembly.
      NOTE:

      Do not damage the radiator assembly when removing the fan shroud assembly.
