Removal [12/2013 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 24
, or refer to PROCEDURE - Step 24

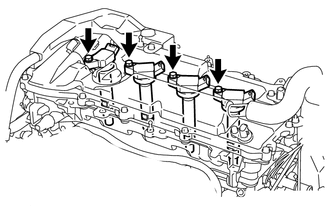

- REMOVE IGNITION COIL ASSEMBLY
- Disconnect the 4 ignition coil assembly connectors.
- Remove the 4 bolts and 4 ignition coil assemblies from the cylinder head cover sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
If an ignition coil assembly has been struck or dropped, replace it.
HINT:
Arrange the removed parts in the correct order.

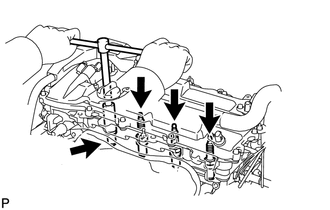

- REMOVE SPARK PLUG
- Remove the 4 spark plugs from the cylinder head sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
If a spark plug has been struck or dropped, replace it.
HINT:
Arrange the removed parts in the correct order.
