Removal [12/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 1 , or refer to PROCEDURE - Step 1

  2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24 , or refer to PROCEDURE - Step 24

  3. REMOVE AIR CLEANER ASSEMBLY

    See step  3

  4. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

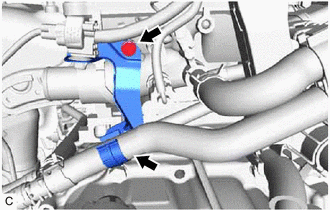

    1. Disengage the heater hose from the heater bracket.
      GTY437749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and separate the heater bracket from the cylinder head sub-assembly.

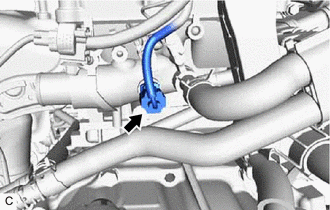

    3. Disconnect the engine coolant temperature sensor connector.
      GTY437753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a 19 mm union nut wrench, remove the engine coolant temperature sensor from the cylinder head sub-assembly.
      NOTE:

      If the engine coolant temperature sensor has been struck or dropped, replace it.

    5. Remove the gasket from the engine coolant temperature sensor.
