Installation [11/2016 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSTALL STARTER ASSEMBLY

Type B:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

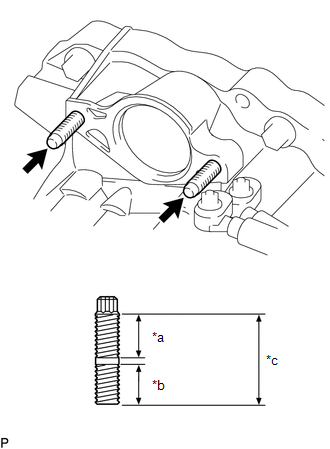

Using an E8 "TORX" socket wrench, install the 2 stud bolts to the automatic transaxle assembly.

Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

Install the starter assembly with the 2 bolts.
Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

Type A:
1. Install the starter assembly with the 2 bolts.
  Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)
Connect the starter assembly connector.
Connect terminal 30 with the nut.
Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
Close the terminal cap.

INSTALL BATTERY
Refer to PROCEDURE - Step 46
INSTALL AIR CLEANER CASE SUB-ASSEMBLY
Refer to PROCEDURE - Step 49
INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
Refer to PROCEDURE - Step 50
INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE
Refer to PROCEDURE - Step 4
INSTALL INLET AIR CLEANER ASSEMBLY
Refer to PROCEDURE - Step 52
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 67
INSTALL COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 4
INSTALL RADIATOR SIDE SEAL RH
Refer to PROCEDURE - Step 5
INSTALL RADIATOR SIDE DEFLECTOR SEAL LH
Refer to PROCEDURE - Step 6
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [11/2016 - ]
