Installation [12/2012 - 08/2016]: Procedure
- INSTALL COOLER CONDENSER ASSEMBLY

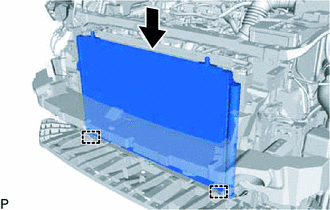

- Attach the 2 guides to install the cooler condenser assembly as shown in the illustration.NOTE:
Do not damage the cooler condenser or radiator when installing the cooler condenser assembly.
HINT:
If a new cooler condenser assembly is installed, add compressor oil to the condenser as follows.
Capacity
Add 40 cc (1.35 fl. oz.)
Compressor Oil
ND-OIL 8 or equivalent
- Attach the 2 guides to install the cooler condenser assembly as shown in the illustration.
- INSTALL NO. 2 FAN SHROUD
- Install the No. 2 fan shroud with the 2 bolts.
Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)
- Attach the 3 clamps to connect the water by-pass pipe to the No. 2 fan shroud.
- Install the No. 2 fan shroud with the 2 bolts.
- INSTALL NO. 1 RADIATOR SUPPORT
Refer to PROCEDURE - Step 15 [12/2012 - 10/2015] , or refer to PROCEDURE - Step 15 [10/2015 - 08/2017]
- CONNECT LIQUID PIPE SUB-ASSEMBLY
- Remove the vinyl tape from the liquid pipe sub-assembly and the connecting part of the cooler condenser with receiver assembly.
- Sufficiently apply compressor oil to a new O-ring and the fitting surface of the tube joint.
Compressor Oil
ND-OIL 8 or equivalent
- Install the O-ring to the liquid pipe sub-assembly.
- Connect the liquid pipe sub-assembly to the cooler condenser assembly with the bolt.
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
- CONNECT DISCHARGE HOSE SUB-ASSEMBLY
- Remove the vinyl tape from the discharge hose sub-assembly and the connecting part of the cooler condenser with receiver assembly.
- Sufficiently apply compressor oil to a new O-ring and the fitting surface of the tube joint.
Compressor Oil
ND-OIL 8 or equivalent
- Install the O-ring to the discharge hose sub-assembly.
- Connect the discharge hose sub-assembly to the cooler condenser assembly with the bolt.
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
- INSTALL RADIATOR UPPER AIR GUIDE PLATE
Refer to PROCEDURE - Step 19 [12/2012 - 10/2015] , or refer to PROCEDURE - Step 19 [10/2015 - 08/2017]
- INSTALL FRONT BUMPER UPPER REINFORCEMENT SUB-ASSEMBLY
Refer to PROCEDURE - Step 20 [12/2012 - 10/2015] , or refer to PROCEDURE - Step 20 [10/2015 - 08/2017]
- INSTALL HEADLIGHT
Refer to INSTALLATION [12/2012 - 10/2015] , or refer to INSTALLATION [10/2015 - ]
- ADJUST HOOD SUB-ASSEMBLY
Refer to PROCEDURE - Step 1
- CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT
See step 2
- WARM UP ENGINE
See step 3
- INSPECT FOR REFRIGERANT LEAK
See step 4
