Removal [12/2012 - ]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.
Refer to PRECAUTION [12/2012 - ]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [12/2012 - 10/2015] Refer to INITIALIZATION [10/2015 - 08/2016] Refer to INITIALIZATION [08/2016 - ]
- REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL LH
Refer to PROCEDURE - Step 3 Refer to PROCEDURE - Step 3
- REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH
Refer to PROCEDURE - Step 6 Refer to PROCEDURE - Step 6
- REMOVE DOOR ASSIST GRIP COVER LH
Refer to PROCEDURE - Step 5 Refer to PROCEDURE - Step 5
- REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 7 Refer to PROCEDURE - Step 7
- REMOVE REAR DOOR SERVICE HOLE COVER LH
Refer to PROCEDURE - Step 11 Refer to PROCEDURE - Step 11
- REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 12 Refer to PROCEDURE - Step 12
- REMOVE REAR DOOR QUARTER WINDOW GLASS LH
Refer to PROCEDURE - Step 13 Refer to PROCEDURE - Step 13
- REMOVE REAR DOOR GLASS SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 15 Refer to PROCEDURE - Step 15
- REMOVE REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 19 Refer to PROCEDURE - Step 19

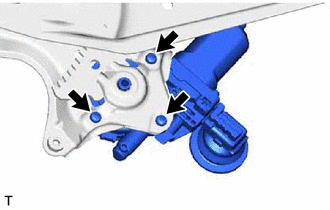

- REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH
