Disassembly [12/2012 - 08/2016]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

    Refer to PRECAUTION [12/2012 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [12/2012 - 10/2015] , or refer to INITIALIZATION [10/2015 - 08/2016]

  3. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

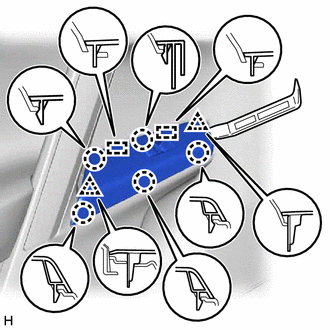

    1. Using a moulding remover, detach the 2 clips, 5 claws and 2 guides and remove the rear power window regulator switch assembly with rear door armrest base panel.
      GTY378589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
  4. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 2

  5. REMOVE DOOR ASSIST GRIP COVER LH

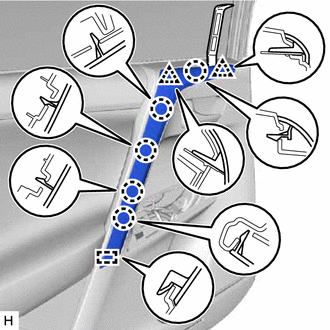

    1. Using a moulding remover, detach the 5 claws, 2 clips and guide and remove the door assist grip cover LH.
      GTY378591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

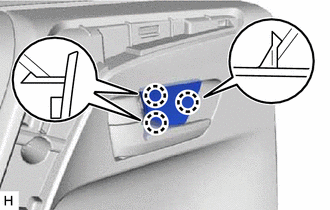

  6. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH
    1. Detach the 3 claws and remove the rear door inside bezel plug LH.
      GTY384011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

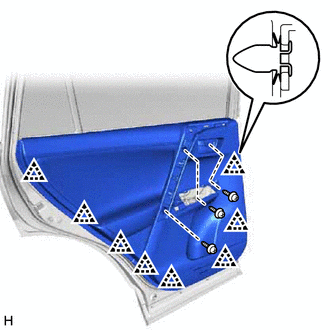

    1. Remove the 3 screws.
      GTY378601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 8 clips and remove the rear door trim board sub-assembly LH.

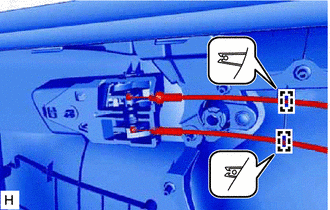

    3. Disengage the rear door lock remote control cable assembly LH and rear door inside locking cable assembly LH from the 2 clamps.
      GTY378600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the rear door lock remote control cable and rear door inside locking cable LH.

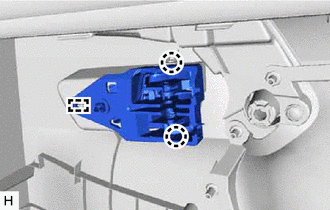

  8. REMOVE REAR DOOR INSIDE HANDLE SUB-ASSEMBLY LH
    1. Detach the 2 claws and guide and remove the rear door inside handle sub-assembly LH.
      GTY378603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP LH

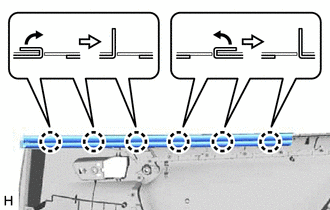

    1. Raise the 6 claws of the rear door inner glass weatherstrip LH as shown in the illustration, and then remove the rear door inner glass weatherstrip LH from the rear door trim board sub-assembly LH.
      GTY378602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 5

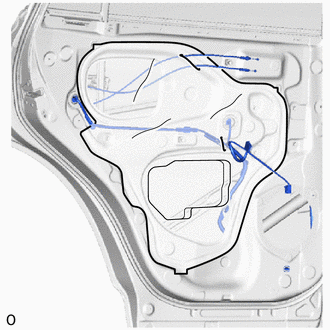

  11. REMOVE REAR DOOR SERVICE HOLE COVER LH
    1. Disconnect the connector of the rear door lock assembly LH.
      GTY366809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull out the rear door lock remote control cable LH, rear door inside locking cable LH and wire harness from the rear door service hole cover LH, and then remove the rear door service hole cover LH.

      HINT:

      Remove any remaining butyl tape from the rear door panel.

  12. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH
    1. Temporarily install the rear power window regulator switch assembly with rear door armrest base panel.
    2. Connect the cable to the negative (-) battery terminal.
    3. Move the rear door window regulator sub-assembly LH so that the rear door glass channel can be seen.
    4. Disconnect the cable from the negative (-) battery terminal.
      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

      Refer to INITIALIZATION [12/2012 - 10/2015] , or refer to INITIALIZATION [10/2015 - 08/2016]

    5. Remove the rear power window regulator switch assembly with rear door armrest base panel.

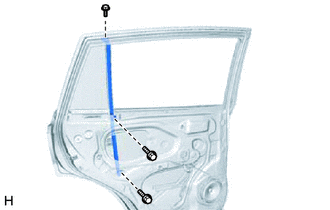

    6. Remove the screw and 2 bolts.
      GTY384012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

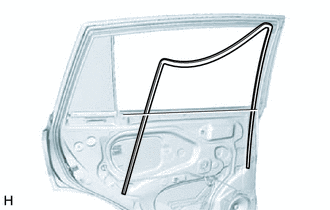

    7. Remove the rear door window division bar sub-assembly LH together with the rear door glass run as shown in the illustration.
      GTY378606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Remove the rear door window division bar sub-assembly LH from the rear door glass run LH.

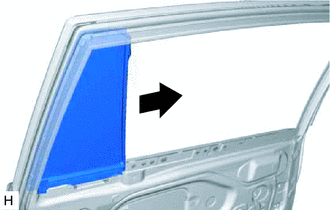

  13. REMOVE REAR DOOR QUARTER WINDOW GLASS LH
    1. Remove the rear door quarter window glass LH.
      GTY384013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE REAR DOOR QUARTER WINDOW WEATHERSTRIP LH
    1. Remove the rear door quarter window weatherstrip LH from the rear door quarter window glass LH.
      GTY378613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE REAR DOOR GLASS SUB-ASSEMBLY LH

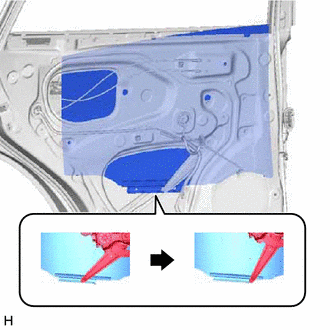

    1. Remove the rear door glass sub-assembly LH from the rear door window regulator sub-assembly LH as shown in the illustration.
      GTY378612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the door glass.

  16. REMOVE REAR DOOR GLASS CHANNEL SUB-ASSEMBLY LH

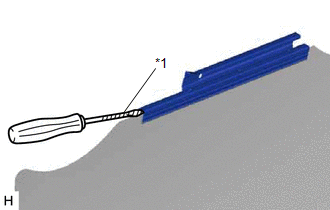

    1. Using a screwdriver, remove the rear door glass channel sub-assembly LH.
      GTY375318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Protective Tape

      HINT:

      Tape the screwdriver tip before use.

  17. REMOVE REAR DOOR GLASS CHANNEL FILLER

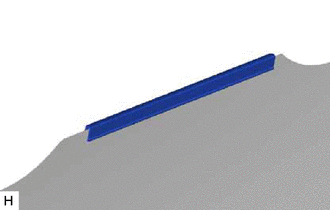

    1. Remove the rear door glass channel filler.
      GTY378616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE REAR DOOR GLASS RUN LH
    1. Remove the front side of the rear door glass run LH.

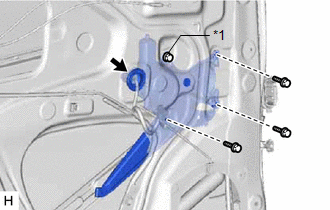

  19. REMOVE REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY LH
    1. Disconnect the connector.
      GTY366192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Temporary Bolt
    2. Loosen the temporary bolt.
      NOTE:

      Do not remove the temporary bolt. If the temporary bolt is removed, the rear door window regulator sub-assembly LH may fall and become damaged.

    3. Remove the 3 bolts and rear door window regulator sub-assembly LH.
    4. Remove the temporary bolt from the rear door window regulator sub-assembly LH.
  20. REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

    Refer to PROCEDURE - Step 12

  21. REMOVE REAR DOOR STIFFENER CUSHION LH
    1. Remove the 2 bolts.
      GTY361051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
    2. Detach the 2 guides, and remove the double-sided tape and rear door stiffener cushion LH.
      NOTE:

      Remove any remaining tape from the door.

  22. REMOVE REAR DOOR BELT MOULDING ASSEMBLY LH

    Refer to PROCEDURE - Step 12

  23. REMOVE REAR DOOR WITH MOTOR LOCK ASSEMBLY LH

    Refer to PROCEDURE - Step 12

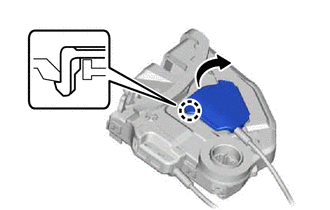

  24. REMOVE REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY LH
    1. Detach the claw and open the cover.
      GTY367634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the rear door lock remote control cable LH.
      GTY367628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

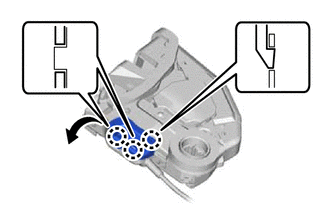

  25. REMOVE REAR DOOR INSIDE LOCKING CABLE ASSEMBLY LH
    1. Detach the 3 claws and open the cover.
      GTY367629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the rear door inside locking cable assembly LH.
      GTY367641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

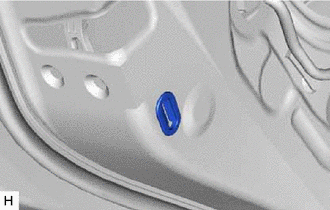

  26. REMOVE REAR DOOR LOCK CHILD PROTECTION COVER LH
    1. Remove the rear door lock child protection cover LH.
      GTY379094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE REAR DOOR OUTSIDE HANDLE COVER LH

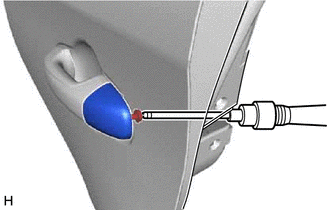

    1. Using a T30 "TORX" socket wrench, loosen the screw and remove the rear door outside handle cover LH.
      GTY379090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE REAR DOOR OUTSIDE HANDLE ASSEMBLY LH

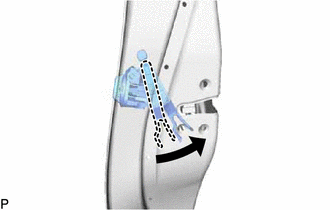

    1. Pull and hold the release plate of the rear door outside handle frame sub-assembly LH as shown in the illustration.

      HINT:

      The release plate may interfere with the rear door outside handle assembly and may be damaged when removing the rear door outside handle assembly, unless the release plate of the rear door outside handle frame sub-assembly is pulled and held.

      GTY366616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

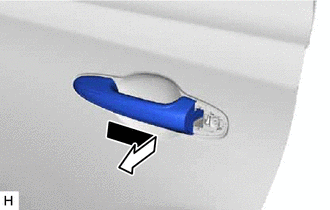

    2. Remove the rear door outside handle assembly LH by sliding and pulling it in the direction indicated by the arrow shown in the illustration.
      GTY379092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

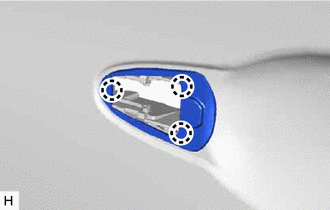

  29. REMOVE REAR DOOR FRONT OUTSIDE HANDLE PAD
    1. Detach the 3 claws and remove the rear door front outside handle pad.
      GTY379095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE REAR DOOR REAR OUTSIDE HANDLE PAD

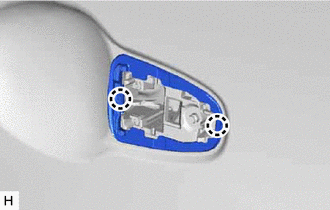

    1. Detach the 2 claws and remove the rear door rear outside handle pad.
      GTY379096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

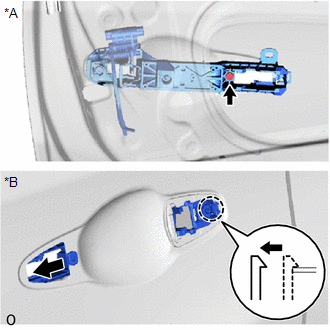

  31. REMOVE REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY LH
    1. Using a T30 "TORX" socket wrench, loosen the screw.
      GTY380657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Inside
      *B Outside
    2. Slide the rear door outside handle frame sub-assembly LH to detach the claw of the rear door outside handle frame sub-assembly LH, and then remove it.
  32. REMOVE REAR DOOR CHECK ASSEMBLY LH

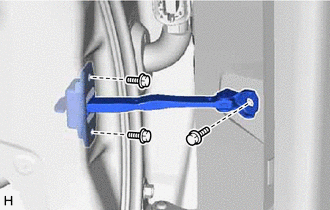

    1. Remove the 3 bolts and rear door check assembly LH.
      GTY379098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

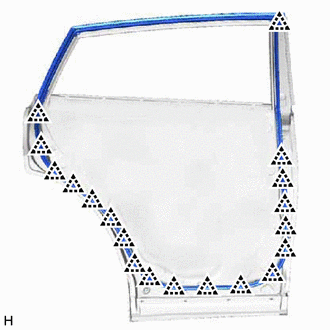

  33. REMOVE REAR DOOR WEATHERSTRIP LH
    1. Detach the 19 clips and remove the rear door weatherstrip LH.
      GTY379097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

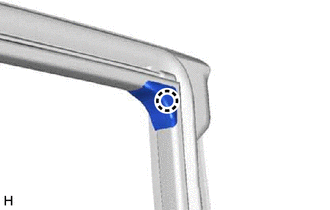

  34. REMOVE REAR DOOR FRAME GARNISH LH
    1. Detach the claw and remove the rear door frame garnish LH.
      GTY384100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE DOOR WINDOW FRAME MOULDING CLIP

    Refer to PROCEDURE - Step 14

  36. REMOVE REAR DOOR OUTSIDE MOULDING SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 15

  37. REMOVE REAR DOOR OUTSIDE STRIPE LH

    Refer to PROCEDURE - Step 16

  38. REMOVE REAR DOOR LOWER OUTSIDE STRIPE LH

    Refer to PROCEDURE - Step 17

  39. REMOVE REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 1 [12/2012 - 10/2015] , or refer to PROCEDURE - Step 1 [10/2015 - ]

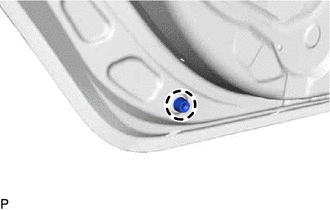

  40. REMOVE REAR DOOR PANEL CUSHION
    1. Detach the 2 claws and remove the rear door panel cushion.
      GTY366617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
