Removal [11/2015 - 12/2018]: Procedure

  1. REMOVE FRONT WHEELS

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 6 [11/2015 - 08/2016] , or refer to PROCEDURE - Step 6 [08/2016 - 12/2018]

  3. REMOVE REAR MOTOR UNDER COVER LH

    Refer to PROCEDURE - Step 7 [11/2015 - 08/2016] , or refer to PROCEDURE - Step 7 [08/2016 - 12/2018]

  4. REMOVE REAR MOTOR UNDER COVER RH

    Refer to PROCEDURE - Step 8 [11/2015 - 08/2016] , or refer to PROCEDURE - Step 8 [08/2016 - 12/2018]

  5. DRAIN HYBRID TRANSAXLE FLUID

    Refer to PROCEDURE - Step 2

  6. REMOVE FRONT AXLE SHAFT NUT

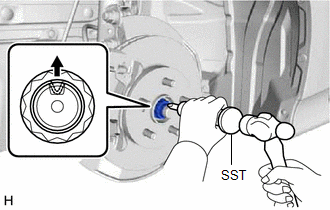

    1. Using SST and a hammer, release the staked part of the front axle shaft nut.
      GTY572066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09930-00010
      NOTE:

      Loosen the staked part of the front axle shaft nut completely, otherwise the threads of the drive shaft may be damaged.

    2. While applying the brakes, remove the front axle shaft nut.
  7. SEPARATE FRONT SPEED SENSOR

    Refer to PROCEDURE - Step 5

  8. SEPARATE TIE ROD END SUB-ASSEMBLY

    Refer to PROCEDURE - Step 13

  9. SEPARATE FRONT STABILIZER LINK ASSEMBLY

    Refer to PROCEDURE - Step 9

  10. SEPARATE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  11. SEPARATE FRONT DRIVE SHAFT ASSEMBLY

    Refer to PROCEDURE - Step 10

  12. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH

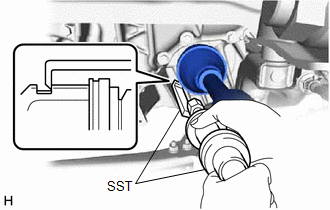

    1. Using SST, remove the front drive shaft assembly LH.
      GTY580544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09520-01010
      • SST: 09520-24010
        1. 09520-32040
      NOTE:
      • Do not damage the front drive shaft oil seal LH.
      • Do not damage the front axle inboard joint boot.
      • Do not drop the front drive shaft assembly LH.
  13. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  14. REMOVE FRONT DRIVE SHAFT HOLE SNAP RING
    1. Using a screwdriver, remove the front drive shaft hole snap ring.
      GTY106453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
