Adjustment [11/2015 -]: Procedure

Refer to PROCEDURE - Step 6 [11/2015 - 08/2016] , or refer to PROCEDURE - Step 6 [08/2016 - 12/2018] , or refer to PROCEDURE - Step 6 [12/2018 - 07/2020] , or refer to PROCEDURE - Step 6 [07/2020 -]

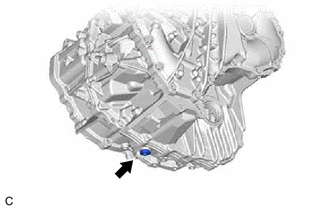

1. Using a 10 mm hexagon socket wrench, remove the filler plug and gasket from the hybrid vehicle transaxle assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

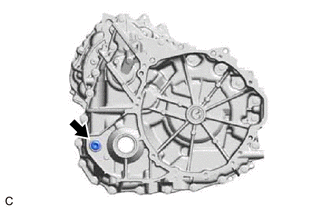

2. Using a 10 mm hexagon socket wrench, remove the drain plug and gasket from the hybrid vehicle transaxle assembly and drain the hybrid transaxle fluid.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Using a 10 mm hexagon socket wrench, install the drain plug and a new gasket to the hybrid vehicle transaxle assembly.

   Torque: 50 N.m (510 kgf.cm, 37 ft./lbf)

4. Using a 10 mm hexagon socket wrench, temporarily install the filler plug and gasket to the hybrid vehicle transaxle assembly.

   HINT:

   Reuse the old gasket as the filler plug will be removed again.

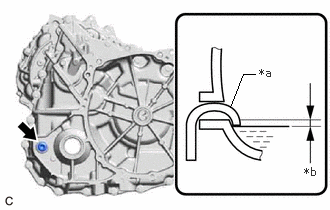

1. Using a 10 mm hexagon socket wrench, remove the filler plug and gasket from the hybrid vehicle transaxle assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Filler Nozzle
   *b	0 to 8 mm (0 to 0.315 in.)

2. Add hybrid transaxle fluid until the hybrid transaxle fluid level is between 0 to 8 mm (0 to 0.315 in.) from the bottom lip of the filler plug opening. [#]
   NOTE:

   • When adding hybrid transaxle fluid, make sure that the vehicle is level.
   • Use Toyota Genuine ATF WS.
   • Be sure to fully insert the filler nozzle into the filler plug opening.
   • Be sure to add hybrid transaxle fluid slowly. If hybrid transaxle fluid is added quickly, the hybrid transaxle fluid may hit internal parts and bounce back, resulting in hybrid transaxle fluid coming out of the filler plug opening.
   • Be sure to directly check that the hybrid transaxle fluid level is within the specified range.
   • Driving the vehicle with an insufficient or excessive amount of hybrid transaxle fluid may damage the hybrid vehicle transaxle assembly.

   Hybrid Transaxle Fluid Standard Capacity (for Reference)

   3.6 liters (3.8 US qts, 3.2 Imp. qts)

3. Using a 10 mm hexagon socket wrench, temporarily install the filler plug and gasket to the hybrid vehicle transaxle assembly.

   HINT:

   Reuse the old gasket as the filler plug will be removed again.

See step  2

Refer to PROCEDURE - Step 66 [11/2015 - 08/2016] , or refer to PROCEDURE - Step 66 [08/2016 - 12/2018] , or refer to PROCEDURE - Step 66 [12/2018 - 07/2020] , or refer to PROCEDURE - Step 66 [07/2020 -]
