Removal [11/2015 - ]: Procedure

  1. REMOVE REAR SEAT HEADREST ASSEMBLY
  2. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
  3. REMOVE FRONT FLOOR COVER RH

    Refer to PROCEDURE - Step 3 and Refer to PROCEDURE - Step 3

  4. REMOVE FRONT FLOOR COVER LH

    Refer to PROCEDURE - Step 4 and Refer to PROCEDURE - Step 4

  5. REMOVE FRONT CENTER FLOOR COVER

    Refer to PROCEDURE - Step 5 and Refer to PROCEDURE - Step 5

  6. REMOVE REAR SEAT CUSHION ASSEMBLY (for Bench Type Seatback)

    Refer to PROCEDURE - Step 7 and Refer to PROCEDURE - Step 7

  7. REMOVE REAR SEATBACK ASSEMBLY (for Bench Type Seatback)

    Refer to PROCEDURE - Step 6 and Refer to PROCEDURE - Step 6

  8. REMOVE REAR SEAT CUSHION ASSEMBLY (for Separate Type Seatback)

    Refer to PROCEDURE - Step 8 and Refer to PROCEDURE - Step 8

  9. REMOVE REAR SEATBACK ASSEMBLY RH (for Separate Type Seatback)

    Refer to PROCEDURE - Step 6 and Refer to PROCEDURE - Step 6

  10. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side (Refer to PROCEDURE - Step 11 and Refer to PROCEDURE - Step 3 ).

  11. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side (Refer to PROCEDURE - Step 16 and Refer to PROCEDURE - Step 8 ).

  12. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Package Tray Trim)

    Refer to PROCEDURE - Step 33 and Refer to PROCEDURE - Step 25

  13. REMOVE REAR FLOOR MAT ASSEMBLY

    Refer to PROCEDURE - Step 31 and Refer to PROCEDURE - Step 23

  14. REMOVE SPARE WHEEL CUSHION

    Refer to PROCEDURE - Step 32 and Refer to PROCEDURE - Step 24

  15. REMOVE REAR DECK TRIM COVER

    Refer to PROCEDURE - Step 34 and Refer to PROCEDURE - Step 26

  16. DISCONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side (See step  17 and See step  18).

  17. REMOVE REAR ABSORBER CAP RH (w/ Package Tray Trim)

    HINT:

    Use the same procedure as for the LH side (Refer to PROCEDURE - Step 36 and Refer to PROCEDURE - Step 28 ).

  18. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    w/o Package Tray Trim: (Refer to PROCEDURE - Step 38 and Refer to PROCEDURE - Step 30 )

    w/ Package Tray Trim: (Refer to PROCEDURE - Step 39 and Refer to PROCEDURE - Step 31 )

  19. DISCONNECT REAR CENTER SEAT LAP TYPE BELT ASSEMBLY

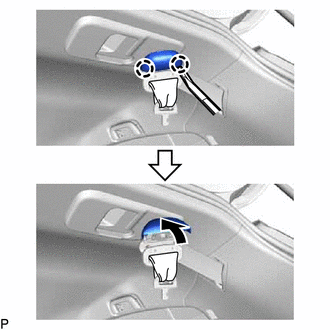

    1. Using a moulding remover, disengage the 2 claws and open the cover.
      GTY330862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

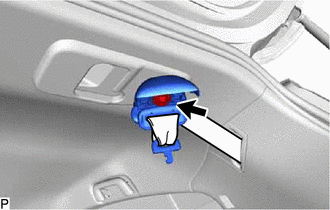

    2. Loosen the bolt and disconnect the shoulder anchor of the rear center seat lap type belt assembly.
      GTY338117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE ROOF SIDE INNER GARNISH RH

    Refer to PROCEDURE - Step 45 and Refer to PROCEDURE - Step 37

  21. REMOVE REAR CENTER SEAT LAP TYPE BELT ASSEMBLY

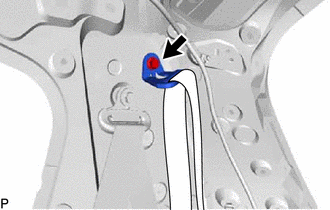

    1. Remove the bolt.
      GTY338118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

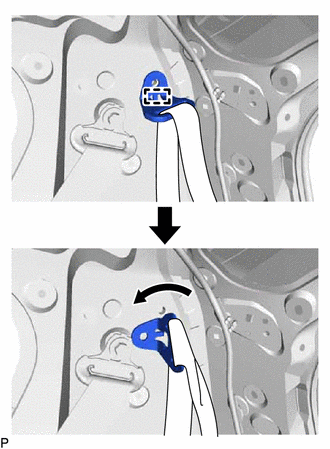

    2. Disengage the guide.
      GTY338119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Turn the shoulder anchor counterclockwise approximately 90° and pull it out.

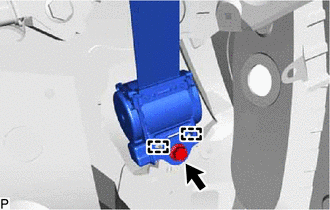

    4. Remove the bolt.
      GTY325233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 2 guides and remove the rear center seat lap type belt assembly.
