Removal [11/2015 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work (Refer to PRECAUTION [11/2015 - 06/2017] and Refer to PRECAUTION [06/2017 - ] ).

  2. REMOVE FRONT FLOOR COVER RH

    Refer to PROCEDURE - Step 3 and Refer to PROCEDURE - Step 3

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

  4. REMOVE FRONT DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 12 and Refer to PROCEDURE - Step 4

  5. REMOVE FRONT FLOOR COVER LH (for LH Side)

    Refer to PROCEDURE - Step 4 and Refer to PROCEDURE - Step 4

  6. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 11 and Refer to PROCEDURE - Step 3

  7. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

    Refer to PROCEDURE - Step 14 and Refer to PROCEDURE - Step 6

  8. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

    Refer to PROCEDURE - Step 16 and Refer to PROCEDURE - Step 8

  9. REMOVE LAP BELT OUTER ANCHOR COVER

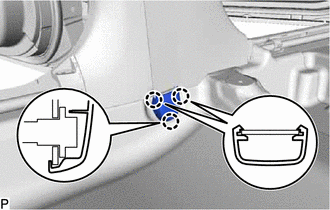

    1. Disengage the 3 claws and remove the lap belt outer anchor cover.
      GTY328972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY

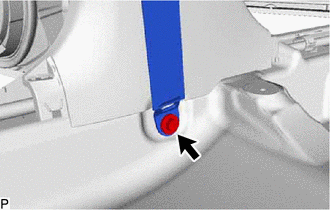

    1. Remove the bolt and disconnect the floor anchor of the front seat outer belt assembly.
      GTY328971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE CENTER PILLAR LOWER GARNISH

    Refer to PROCEDURE - Step 19 and Refer to PROCEDURE - Step 11

  12. REMOVE CENTER PILLAR UPPER GARNISH

    Refer to PROCEDURE - Step 20 and Refer to PROCEDURE - Step 12

  13. REMOVE FRONT SEAT OUTER BELT ASSEMBLY

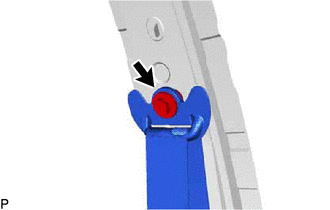

    1. Remove the bolt and the disconnect the shoulder anchor of the front seat outer belt assembly.
      GTY328969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

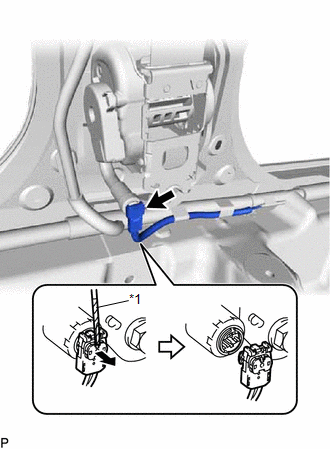

    2. Using a screwdriver, pull out the locking button in the direction shown by the arrow in the illustration to release the lock, and disconnect the pretensioner connector as shown in the illustration.
      GTY688463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape

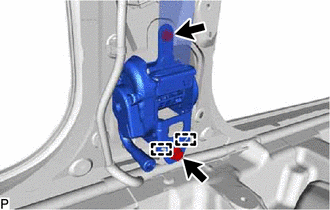

    3. Remove the 2 bolts.
      GTY328960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 2 hooks and remove the front seat outer belt assembly.
