Disassembly [12/2013 - ]: Procedure

  1. REMOVE CENTER STOP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR WASHER NOZZLE

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 1 REAR SPOILER PROTECTOR
    1. Remove the 3 No. 1 rear spoiler protectors.

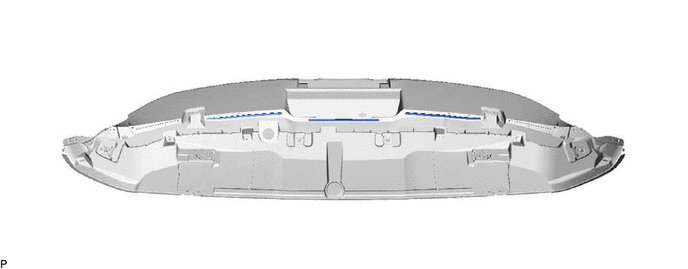

      GTY423956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 2 REAR SPOILER PROTECTOR
    1. Remove the No. 2 rear spoiler protector.

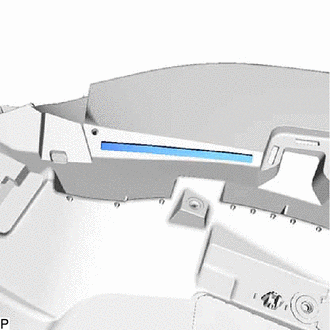

      GTY450432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  5. REMOVE NO. 3 REAR SPOILER PROTECTOR
    1. Remove the No. 3 rear spoiler protector.

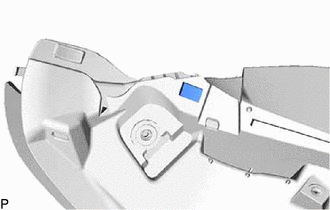

      GTY423946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  6. REMOVE REAR SPOILER COVER LH
    1. Disengage the 3 claws to remove the rear spoiler cover LH.

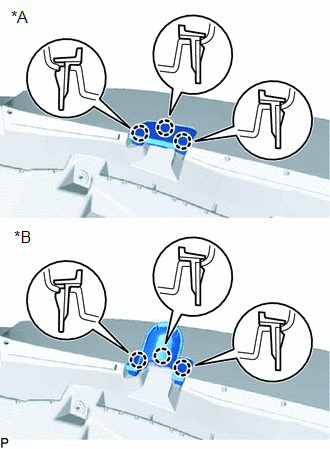

      GTY453215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Fixed Glass Type
      *B for Glass Hatch Type
  7. REMOVE REAR SPOILER COVER RH

    HINT:

    Use the same procedure as for the LH side.
