Removal [12/2013 - ]: Procedure

  1. REMOVE REAR SPOILER SUB-ASSEMBLY

    Refer to REMOVAL [12/2013 - ]

  2. REMOVE REAR WASHER NOZZLE

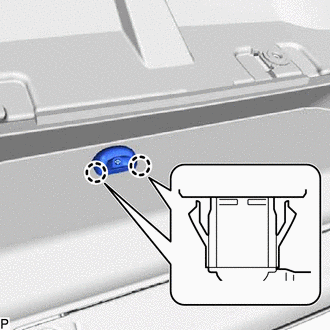

    1. Disengage the 2 claws.
      GTY445769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

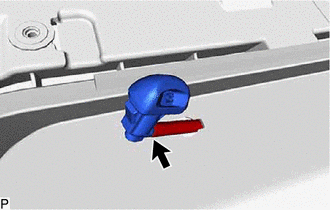

    2. Disconnect the washer hose and remove the rear washer nozzle.
      GTY445768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
