Installation [12/2013 - ]: Procedure

INSTALL BACK WINDOW LOCK ASSEMBLY

HINT:

Make sure to remove the string before installing a new back window lock assembly.

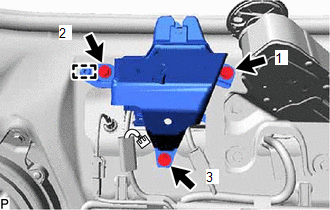

Engage the clamp and install the back window lock assembly with the 3 bolts.

Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Tighten the bolts in the order shown in the illustration.

INSTALL BACK DOOR TRIM PANEL ASSEMBLY
Refer to PROCEDURE - Step 47 , or refer to PROCEDURE - Step 47
INSTALL NO. 2 BACK DOOR SERVICE HOLE COVER
Refer to PROCEDURE - Step 48 , or refer to PROCEDURE - Step 48
INSTALL NO. 1 BACK DOOR SERVICE HOLE COVER
Refer to PROCEDURE - Step 49 , or refer to PROCEDURE - Step 49
INSTALL BACK DOOR LOCK COVER
Refer to PROCEDURE - Step 50 , or refer to PROCEDURE - Step 50
INSTALL BACK DOOR TRIM COVER LH
Refer to PROCEDURE - Step 51 , or refer to PROCEDURE - Step 51
INSTALL BACK DOOR TRIM COVER RH
Refer to PROCEDURE - Step 52 , or refer to PROCEDURE - Step 52
INSTALL BACK WINDOW UPPER TRIM PANEL
Refer to PROCEDURE - Step 53 , or refer to PROCEDURE - Step 53
