Disassembly [12/2013 - 11/2015]: Procedure
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [12/2013 - 11/2016]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [12/2013 - 11/2016]
- REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH

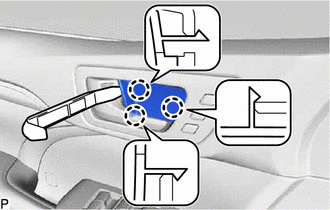

- REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

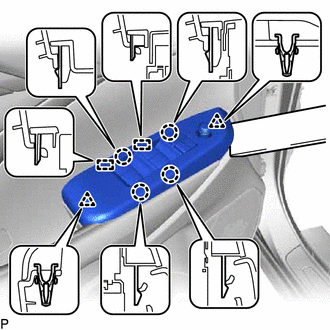

- REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
- REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
- REMOVE COURTESY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

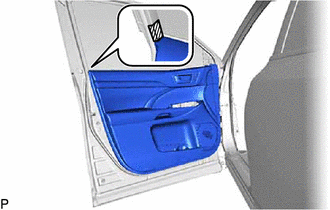

- Put protective tape around the front door panel.

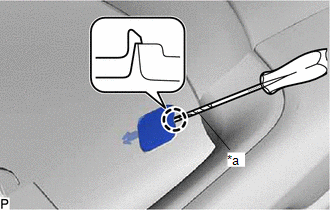

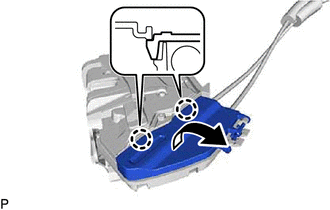

Protective Tape - Using a screwdriver with its tip wrapped with protective tape, disengage the claw and open the cover.
*a Protective Tape - Remove the 3 screws.

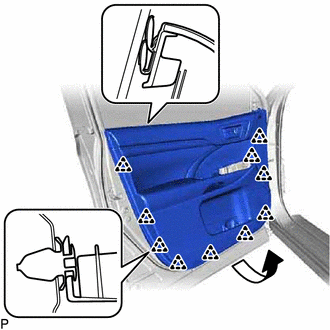

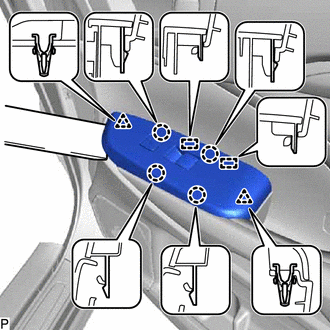

- Disengage the 10 clips and remove the front door trim board sub-assembly as shown in the illustration.
- w/ Memory:
- Disconnect the connector.
- w/ Illumination:
- Disconnect the connector.

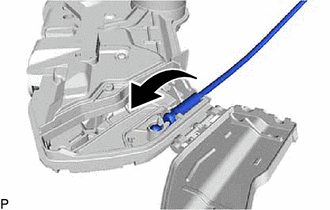

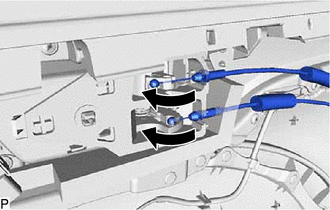

- Disconnect the front door lock remote control cable assembly and front door inside locking cable assembly.
- Put protective tape around the front door panel.
- REMOVE FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY
- REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP
- REMOVE SEAT MEMORY SWITCH (w/ Memory)
Refer to PROCEDURE - Step 2
- REMOVE OUTER MIRROR CONTROL ECU ASSEMBLY (w/ Memory)
Refer to PROCEDURE - Step 7
- REMOVE OUTER REAR VIEW MIRROR ASSEMBLY WITH COVER
Refer to PROCEDURE - Step 7
- REMOVE DOOR SIDE AIRBAG SENSOR
Refer to PROCEDURE - Step 9
- REMOVE FRONT NO. 1 SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 7

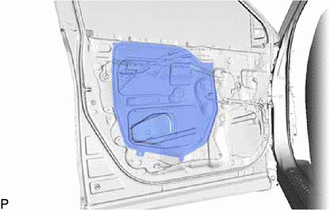

- REMOVE FRONT DOOR SERVICE HOLE COVER
- REMOVE FRONT DOOR GLASS SUB-ASSEMBLY
- Remove the grommet.
- Connect the cable to the negative (-) battery terminal.
- for Driver Side:
- Connect the power window regulator master switch assembly and move the front door glass sub-assembly so that the door glass bolts can be seen.
- Disconnect the power window regulator master switch assembly.
- for Front Passenger Side:
- Connect the power window regulator switch assembly and move the front door glass sub-assembly so that the door glass bolts can be seen.
- Disconnect the power window regulator switch assembly.
- Disconnect the cable from the negative (-) battery terminal.
- Remove the 2 bolts.NOTE:
After the bolts are removed, do not allow the front door glass sub-assembly to fall.

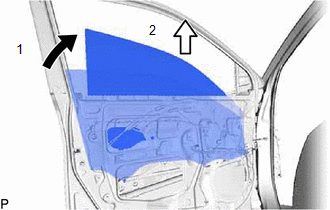

- Remove the front door glass sub-assembly as indicated by the arrows, in the order shown in the illustration.NOTE:
Do not damage the front door glass sub-assembly.
- Remove the grommet.

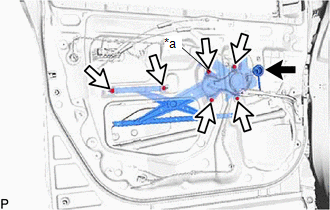

- REMOVE FRONT DOOR WINDOW REGULATOR ASSEMBLY
- Disconnect the connector.
*a Temporary Bolt - Loosen the temporary bolt.NOTE:
Do not remove the temporary bolt. If the temporary bolt is removed, the front door window regulator assembly may fall and cause damage.
- Remove the 5 bolts.
- Remove the front door window regulator assembly.
- Remove the temporary bolt from the front door window regulator assembly.
- Disconnect the connector.
- REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY
- REMOVE FRONT DOOR GLASS RUN
- REMOVE FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY
- REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

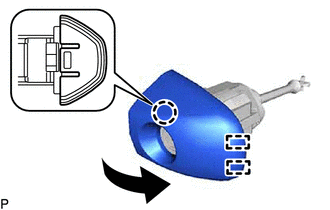

- REMOVE FRONT DOOR OUTSIDE HANDLE COVER WITH LOCK CYLINDER ASSEMBLY (for Driver Side)
- REMOVE FRONT DOOR OUTSIDE HANDLE COVER (for Driver Side)
- REMOVE FRONT DOOR OUTSIDE HANDLE COVER (for Front Passenger Side)

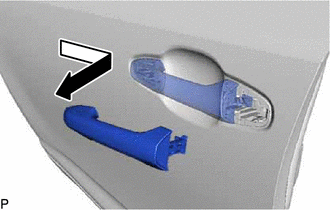

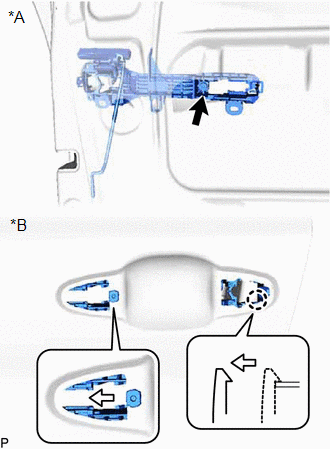

- REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY
- REMOVE FRONT DOOR FRONT OUTSIDE HANDLE PAD
- REMOVE FRONT DOOR REAR OUTSIDE HANDLE PAD

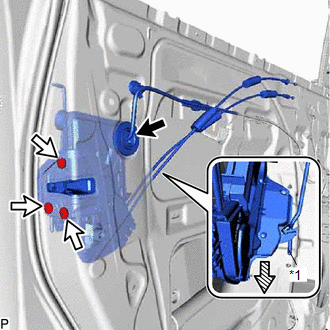

- REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY
- Disconnect the connector.
*1 Front Door Lock Open Rod - Using a T30 "TORX" socket wrench, remove the 3 screws.
- Slide the front door lock with motor assembly downward to disconnect the front door lock open rod and remove the front door lock with motor assembly and cables as a unit.
- When reusing the front door lock with motor assembly:
- Disconnect the connector.

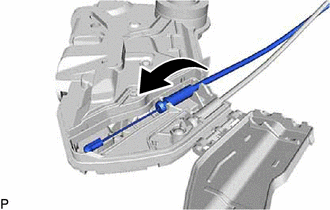

- REMOVE FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY
- REMOVE FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY
- REMOVE FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY

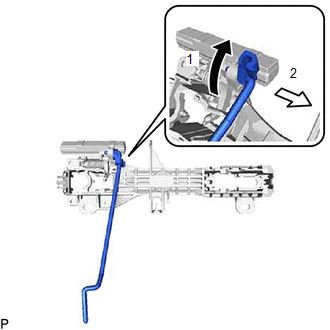

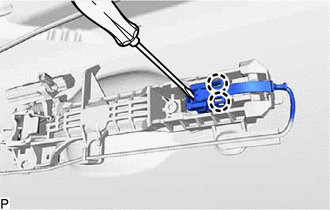

- REMOVE FRONT DOOR LOCK OPEN ROD

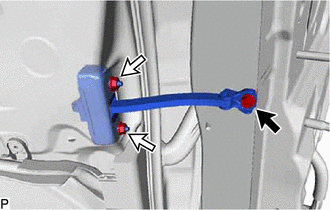

- REMOVE FRONT DOOR CHECK ASSEMBLY
- REMOVE FRONT DOOR WEATHERSTRIP
- REMOVE FRONT DOOR NO. 2 STIFFENER CUSHION
- REMOVE DOOR FRAME GARNISH
- REMOVE FRONT DOOR PANEL CUSHION
- REMOVE FRONT DOOR PANEL PROTECTOR
- REMOVE FRONT DOOR VENT SEAL

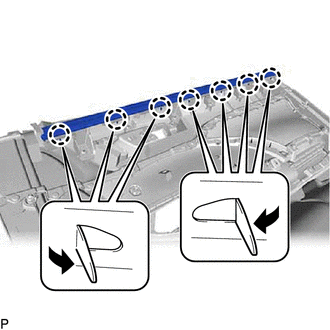

- REMOVE FRONT DOOR BELT MOULDING ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE FRONT DOOR REAR WINDOW FRAME MOULDING
Refer to PROCEDURE - Step 3
- REMOVE FRONT DOOR UPPER WINDOW FRAME MOULDING
Refer to PROCEDURE - Step 4
- REMOVE FRONT DOOR UPPER INNER BLACK OUT TAPE
Refer to PROCEDURE - Step 14
- REMOVE FRONT DOOR REAR INNER BLACK OUT TAPE
Refer to PROCEDURE - Step 15
- REMOVE FRONT DOOR OUTSIDE MOULDING SUB-ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE FRONT DOOR UPPER OUTSIDE MOULDING PAD
Refer to PROCEDURE - Step 2
