Removal [12/2013 - ]: Procedure

  1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH

    Refer to PROCEDURE - Step 3 , or refer to PROCEDURE - Step 3

  2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 4 , or refer to PROCEDURE - Step 4

  3. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

    Refer to PROCEDURE - Step 5 , or refer to PROCEDURE - Step 5

  4. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 6 , or refer to PROCEDURE - Step 6

  5. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 , or refer to PROCEDURE - Step 8

  7. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY
    NOTE:

    Do not touch the speaker cone.

    1. Disconnect the connector.

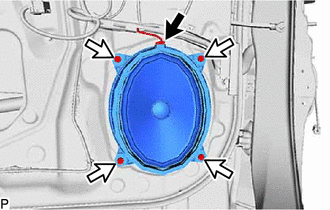

      GTY452174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 screws and front No. 1 speaker assembly.
