Removal [12/2013 - ]: Procedure

  1. PRECAUTION (for Glass Hatch Type)
    NOTE:
    • Be sure to use the centering jig when removing and installing the rear wiper motor assembly. Failure to do so will result in a change of the location of the axis of the rear wiper motor assembly, causing the wiping angle to change.
    • After installing the rear wiper motor assembly, do not open the glass hatch before installing the rear wiper link.
    • If the rear wiper motor assembly is removed without using the centering jig, the rear wiper motor assembly must be replaced with a new one.
  2. REMOVE BACK WINDOW UPPER TRIM PANEL

    Refer to PROCEDURE - Step 1 , or refer to PROCEDURE - Step 1

  3. REMOVE BACK DOOR TRIM COVER LH

    Refer to PROCEDURE - Step 2 , or refer to PROCEDURE - Step 2

  4. REMOVE BACK DOOR TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

  5. REMOVE BACK DOOR LOCK COVER (for Glass Hatch Type)

    Refer to PROCEDURE - Step 4 , or refer to PROCEDURE - Step 4

  6. REMOVE NO. 2 BACK DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 5 , or refer to PROCEDURE - Step 5

  7. REMOVE NO. 1 BACK DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 6 , or refer to PROCEDURE - Step 6

  8. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 7 , or refer to PROCEDURE - Step 7

  9. REMOVE REAR WIPER SHAFT COVER (for Glass Hatch Type)

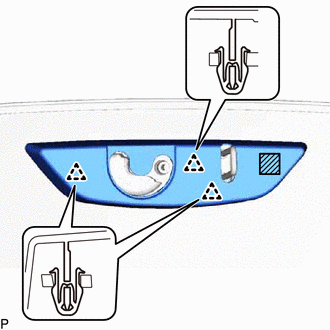

    1. Disengage the 3 clips.
      GTY449191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener
    2. Disengage the fastener and remove the rear wiper shaft cover.
  10. REMOVE REAR WIPER ARM HEAD CAP

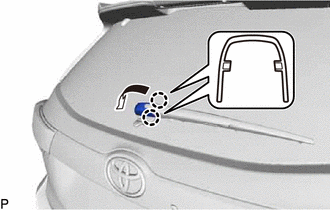

    1. Disengage the 2 claws as shown in the illustration.
      GTY445797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

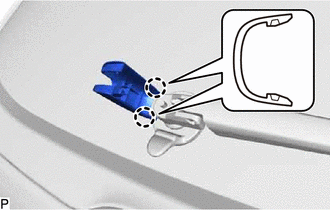

    2. Disengage the 2 claws and remove the rear wiper arm head cap.
      GTY445780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

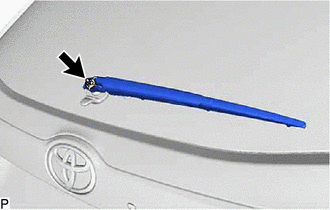

    1. Remove the nut and rear wiper arm and blade assembly.
      GTY445779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR WIPER MOTOR GROMMET (for Fixed Glass Type)
    1. Remove the rear wiper motor grommet.
      GTY445778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR WIPER LINK CAP (for Glass Hatch Type)

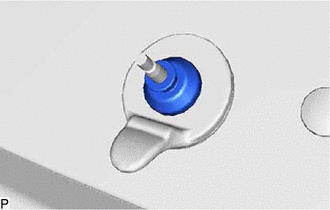

    1. Remove the rear wiper link cap.
      GTY455156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE REAR WIPER LINK PIVOT WITH WASHER PACKING (for Glass Hatch Type)

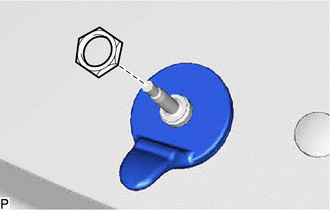

    1. Remove the nut and rear wiper link pivot with washer packing.
      GTY455158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE REAR WIPER MOTOR ASSEMBLY (for Fixed Glass Type)

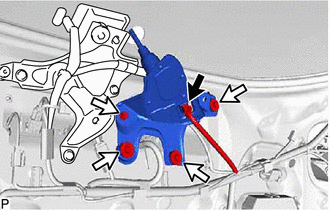

    1. Disconnect the connector.
      GTY445785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the 4 bolts and remove the rear wiper motor assembly.
      NOTE:

      Be careful not to scratch the back door glass.

  16. REMOVE REAR WIPER MOTOR ASSEMBLY (for Glass Hatch Type)
    1. When reusing the rear wiper motor assembly:
      1. Open the glass hatch.

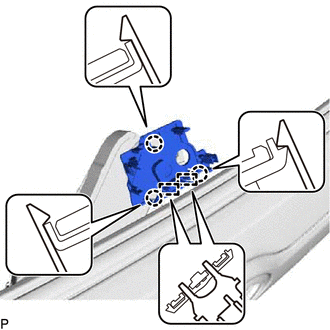

      2. Engage the 3 claws and 2 guides to install the centering jig.
        NOTE:
        • The centering jig cannot be reused.
        • Do not remove the centering jig before installing the rear wiper link.
        GTY445783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

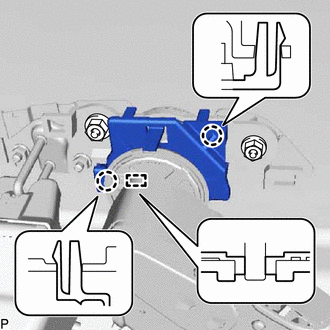

      3. Close the glass hatch and engage the 2 claws and guide.
        NOTE:

        Be sure to engage the 2 claws and guide securely.

        GTY445782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

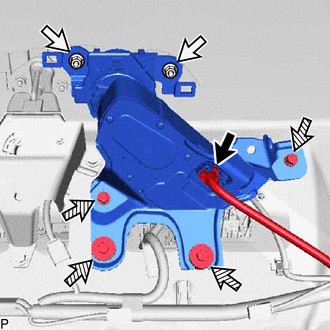

      4. Disconnect the connector.
        GTY445654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Nut
        Bolt
      5. Remove the 2 nuts.
      6. Remove the 4 bolts and rear wiper motor assembly.
        NOTE:
        • Do not hold the rear wiper motor assembly by the rear wiper link.
        • Be careful not to scratch the back door glass.
    2. When using a new rear wiper motor assembly:

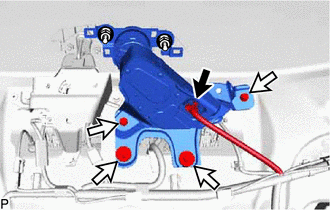

      1. Disconnect the connector.
        GTY455181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the 4 bolts.

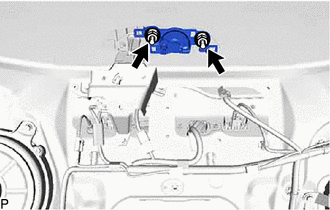

      3. Remove the 2 nuts and rear wiper motor assembly.
        GTY445886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:

        Be careful not to scratch the back door glass.
