Removal [12/2013 - ]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17

  2. REMOVE STOP LIGHT SWITCH ASSEMBLY

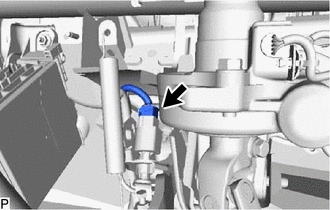

    1. Disconnect the connector.
      GTY449431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

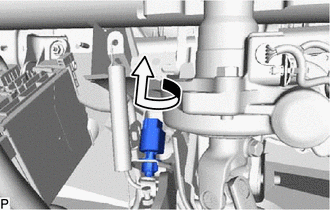

    2. Turn the stop light switch assembly counterclockwise to remove it.
      GTY449432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
