Removal [03/2017 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 19 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 19 [08/2018 - 09/2019] , or refer to PROCEDURE - Step 19 [09/2019 - 03/2020] , or refer to PROCEDURE - Step 20 [03/2020 - 10/2020] , or refer to PROCEDURE - Step 20 [10/2020 - 08/2022] , or refer to PROCEDURE - Step 20 [08/2022 - ]

  2. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE SPARK PLUG

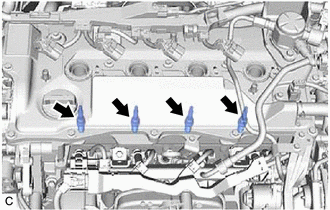

    1. GTY754301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 4 spark plugs from the cylinder head sub-assembly.

      NOTE:

      If a spark plug has been struck or dropped, replace it.

      HINT:

      Arrange the removed parts in the correct order.
