Removal [03/2017 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 19 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 19 [08/2018 - 09/2019] , or refer to PROCEDURE - Step 19 [09/2019 - 03/2020] , or refer to PROCEDURE - Step 20 [03/2020 - 10/2020] , or refer to PROCEDURE - Step 20 [10/2020 - 08/2022] , or refer to PROCEDURE - Step 20 [08/2022 - ]

  2. REMOVE IGNITION COIL ASSEMBLY

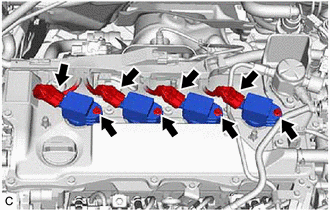

    1. GTY771557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the 4 ignition coil assembly connectors.

    2. Using an 8 mm socket wrench, remove the 4 bolts and 4 ignition coil assemblies from the cylinder head cover sub-assembly.
      NOTE:

      If a ignition coil assembly has been struck or dropped, replace it.

      HINT:

      Arrange the removed parts in the correct order.

  3. REMOVE SPARK PLUG

    Refer to PROCEDURE - Step 3
