Installation [06/2017 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- INSTALL NO. 2 ECM BRACKET
- Install the No. 2 ECM bracket to the ECM with the 2 screws.
Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)
- Install the No. 2 ECM bracket to the ECM with the 2 screws.
- INSTALL NO. 1 ECM BRACKET
- Install the No. 1 ECM bracket to the ECM with the 2 screws.
Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)
- Install the No. 1 ECM bracket to the ECM with the 2 screws.
- INSTALL ECM
- Install the ECM with the 2 bolts and nut.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
NOTE:If the ECM has been struck or dropped, replace it.

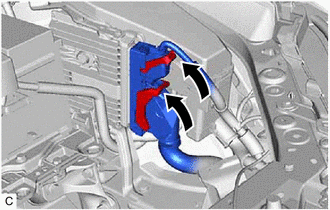

- Connect the 2 ECM connectors and rotate the 2 levers to lock them.NOTE:
- When connecting the ECM connectors, make sure that the connecting parts of the ECM connectors are free of dirt, water or other foreign matter.
- Be sure to securely connect the ECM connectors.
- Install the ECM with the 2 bolts and nut.
- INSTALL AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE
Refer to PROCEDURE - Step 44 [06/2017 - 10/2020] , or refer to PROCEDURE - Step 44 [10/2020 - ]
- INSTALL INLET AIR CLEANER ASSEMBLY
Refer to PROCEDURE - Step 45 [06/2017 - 10/2020] , or refer to PROCEDURE - Step 45 [10/2020 - ]
- INSTALL COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 2 [06/2017 - 10/2020] , or refer to PROCEDURE - Step 2 [10/2020 - ]
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2
- PERFORM INITIALIZATION
Refer to PRECAUTION [06/2017 - 10/2020] , or refer to PRECAUTION [10/2020 - ]
