On-Vehicle Inspection [06/2017 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 7 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 7 [08/2018 - 10/2020] , or refer to PROCEDURE - Step 7 [10/2020 - 08/2022] , or refer to PROCEDURE - Step 7 [08/2022 - 08/2023] , or refer to PROCEDURE - Step 7 [08/2023 - ]

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 8 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 8 [08/2018 - 10/2020] , or refer to PROCEDURE - Step 8 [10/2020 - 08/2022] , or refer to PROCEDURE - Step 8 [08/2022 - 08/2023] , or refer to PROCEDURE - Step 8 [08/2023 - ]

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 9 [08/2018 - 10/2020] , or refer to PROCEDURE - Step 9 [10/2020 - 08/2022] , or refer to PROCEDURE - Step 9 [08/2022 - 08/2023] , or refer to PROCEDURE - Step 9 [08/2023 - ]

  4. REMOVE REAR ENGINE UNDER COVER LH

    Refer to PROCEDURE - Step 10 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 10 [08/2018 - 10/2020] , or refer to PROCEDURE - Step 10 [10/2020 - 08/2022] , or refer to PROCEDURE - Step 10 [08/2022 - 08/2023] , or refer to PROCEDURE - Step 10 [08/2023 - ]

  5. INSPECT REAR ENGINE MOUNTING INSULATOR

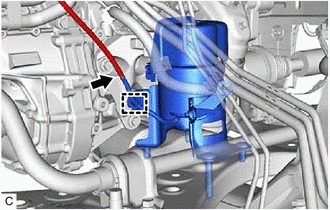

    1. Disengage the clamp to separate the vacuum hose.
      GTY766141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the vacuum hose.

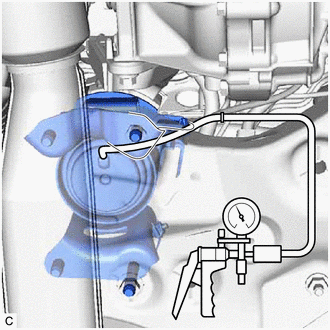

    3. Using a vacuum pump, apply vacuum of 80 kPa (600 mmHg, 23.6 in.Hg) and wait for 1 minute.
      GTY766147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Check that there is no change in the needle movement of the vacuum pump gauge.

      OK

      Vacuum pressure holds.

    5. Check that there is no fluid leakage caused by a break in the diaphragm.
    6. Connect the vacuum hose.
    7. Engage the clamp to install the vacuum hose.
  6. INSTALL REAR ENGINE UNDER COVER LH

    Refer to PROCEDURE - Step 68 [06/2017 - 10/2020] , or refer to PROCEDURE - Step 68 [10/2020 - ]

  7. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 69 [06/2017 - 10/2020] , or refer to PROCEDURE - Step 69 [10/2020 - ]

  8. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 70 [06/2017 - 10/2020] , or refer to PROCEDURE - Step 70 [10/2020 - ]

  9. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 71 [06/2017 - 10/2020] , or refer to PROCEDURE - Step 71 [10/2020 - ]
