  1. INSTALL TRANSMISSION WIRE
    1. Coat the O-ring of the transmission wire with Toyota Genuine ATF WS.
      GTY699982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the transmission wire to the automatic transaxle case sub-assembly with the bolt.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    3. Connect the transmission revolution sensor (NT) connector and transmission revolution sensor (NC) connector.
    4. Install the temperature sensor to the transmission valve body assembly with the bolt and temperature sensor clamp.

      Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)

      NOTE:

      To prevent it from being pinched between the transmission valve body assembly and the transmission case side cover, pass the transmission revolution sensor (NC) wire under the transmission wire (temperature sensor wire) as shown in the illustration.

      GTY691969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Transmission Wire (Temperature Sensor Wire)
      *b Transmission Revolution Sensor (NC) Wire
    5. Connect the 9 solenoid valve connectors.
      NOTE:

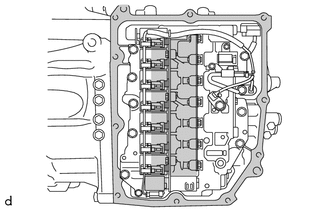

      GTY732262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Do not let transmission wire protrude into this area.
      • To prevent it from being pinched between the transmission valve body assembly and the transmission case side cover, do not let the transmission wire ride up over the area shown in the illustration.
      • To prevent it from being pinched between the transmission case side cover and the automatic transaxle case sub-assembly, do not let the transmission wire protrude toward the transmission case side cover installation surface.
      GTY716321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Engage the clamp to connect the transmission wire to the solenoid lock plate.
      GTY716312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Connect the transmission wire connector, rotate the lever and engage the claw.

      HINT:

      Rotate the lever until the claw of the transmission wire connector makes a click sound.

      GTY745453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL TRANSMISSION CASE SIDE COVER
    1. Clean the transmission case side cover installation surface of the automatic transaxle case sub-assembly.
      NOTE:

      Completely remove any oil or grease from the contact surfaces of the automatic transaxle case sub-assembly.

      GTY759496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Area to be cleaned
    2. Clean the 3 bolt holes shown in the illustration.
      GTY735331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Apply adhesive to 2 or 3 threads on the end of the bolt (A) and 2 bolts (D).

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

      NOTE:

      Make sure to install the bolts immediately after applying adhesive to prevent foreign matter from attaching to them.

      GTY708679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Adhesive

      HINT:

      The bolt (A) and 2 bolts (D) are in the locations shown in the following step.

    4. Temporarily install a new transmission case side cover to the automatic transaxle case sub-assembly with the 2 bolts ((A) and (B)).
      GTY707697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Bolt (A) is an adhesive-coated bolt.
      • To avoid damaging the gasket, prevent it from contacting the surrounding area during installation procedures.
    5. Temporarily install the 6 bolts (C) and 2 bolts (D).
      NOTE:

      Bolt (D) is an adhesive-coated bolt.

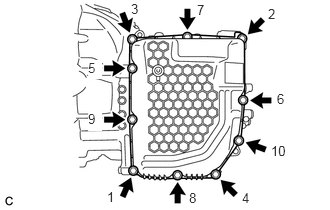

    6. Fully tighten the 10 bolts in the order shown in the illustration.
      Fig 1: Transmission Case Side Cover Bolts Tightening Sequence
      GTY735125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt (A) and Bolt (D)

      Torque: 6.5 N*m (66 kgf*cm, 58 in.*lbf)

      Bolt (B) and Bolt (C)

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

  3. INSTALL OIL COOLER UNION SUB-ASSEMBLY

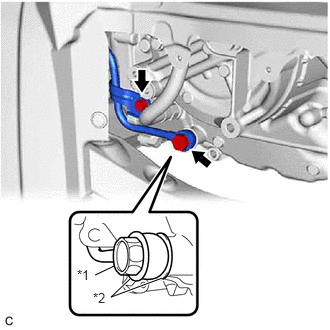

    1. Pass the oil cooler union sub-assembly through 2 new gaskets and temporarily install it to the automatic transaxle case sub-assembly with the oil cooler union bolt.
      GTY764931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Oil Cooler Union Bolt
      *2 Gasket
    2. Temporarily install the oil cooler union sub-assembly bracket portion to the automatic transaxle case sub-assembly with the bolt.
    3. Fully tighten the oil cooler union bolt.

      Torque: 22.6 N*m (230 kgf*cm, 17 ft.*lbf)

    4. Fully tighten the bolt.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  4. INSTALL FRONT SUSPENSION MEMBER DYNAMIC DAMPER

    Refer to PROCEDURE - Step 8

  5. INSTALL FRONT ENGINE MOUNTING INSULATOR

    Refer to INSTALLATION [06/2017 - ]

  6. ADJUST AUTOMATIC TRANSAXLE FLUID

    Refer to ADJUSTMENT [06/2017 - 08/2018] , or refer to ADJUSTMENT [08/2018 - 09/2019] , or refer to ADJUSTMENT [09/2019 - ]

  7. INSTALL FRONT FENDER APRON SEAL LH

    Refer to PROCEDURE - Step 65

  8. INSTALL REAR ENGINE UNDER COVER LH

    Refer to PROCEDURE - Step 68

  9. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 69

  10. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 70

  11. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 71

  12. INSTALL FRONT WHEEL LH

    Refer to PROCEDURE - Step 1
