Removal [06/2017 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT FLOOR COVER LH

    Refer to PROCEDURE - Step 3

  2. REMOVE FRONT FLOOR COVER RH

    Refer to PROCEDURE - Step 4

  3. REMOVE FRONT CENTER FLOOR BRACE

    Refer to PROCEDURE - Step 5

  4. REMOVE CENTER FLOOR CROSSMEMBER BRACE

    Refer to PROCEDURE - Step 6

  5. REMOVE CENTER EXHAUST PIPE ASSEMBLY
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

    1. Remove the 6 bolts, 2 nuts and disconnect the center exhaust pipe assembly from the front exhaust pipe assembly (TWC: Rear Catalyst), tail exhaust pipe assembly and tail exhaust pipe assembly LH.
      GTY766212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the center exhaust pipe assembly from the 2 exhaust pipe supports.
    3. Remove the 3 gaskets from the center exhaust pipe assembly and front exhaust pipe assembly (TWC: Rear Catalyst).
  6. REMOVE REAR NO. 1 STABILIZER BAR BRACKET

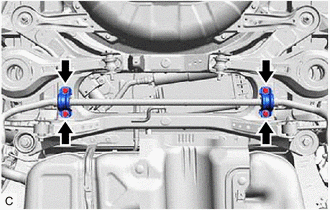

    1. Remove the 4 bolts and 2 rear No. 1 stabilizer bar brackets from the vehicle body.
      GTY754206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE CANISTER (CHARCOAL CANISTER ASSEMBLY)
    1. Disconnect the fuel tank vent hose from the canister (charcoal canister assembly).
      GTY770717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Tank Vent Hose *2 Pipe (Canister (Charcoal Canister Assembly))
      *a Retainer *b Tab
      *c Tube Connector *d O-ring
      Pinch Pull
      NOTE:
      • Remove any dirt or foreign matter on the tube connector before performing this work.
      • Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connector has an O-ring that seals the pipe (canister (charcoal canister assembly)).
      • Perform this work by hand. Do not use any tools.
      • Do not forcibly bend, twist or turn the fuel tank vent hose.
      • Protect the disconnected parts by covering them with plastic bags after disconnecting the fuel tank vent hose.
      • If the tube connector and pipe (canister (charcoal canister assembly)) are stuck, push and pull to release them.

      HINT:

      Do not remove the retainer.

      1. Pinch the tabs of the retainer to disengage the lock claws and pull it down.
      2. Pull off the fuel tank vent hose.

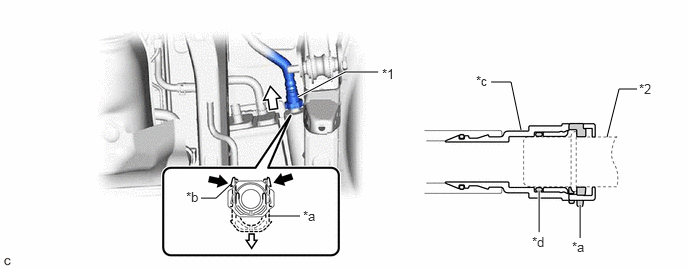

    2. Disconnect the vent line hose from the canister (charcoal canister assembly).
      GTY751134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Vent Line Hose *2 Pipe (Canister (Charcoal Canister Assembly))
      *a Retainer *b Tab
      *c Tube Connector *d O-ring
      Pinch Pull
      NOTE:
      • Remove any dirt or foreign matter on the tube connector before performing this work.
      • Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connector has an O-ring that seals the pipe (canister (charcoal canister assembly)).
      • Perform this work by hand. Do not use any tools.
      • Do not forcibly bend, twist or turn the vent line hose.
      • Protect the disconnected parts by covering them with plastic bags after disconnecting the vent line hose.
      • If the tube connector and pipe (canister (charcoal canister assembly)) are stuck, push and pull to release them.

      HINT:

      Do not remove the retainer.

      1. Pinch the tabs of the retainer to disengage the lock claws and pull it down.
      2. Pull off the vent line hose.

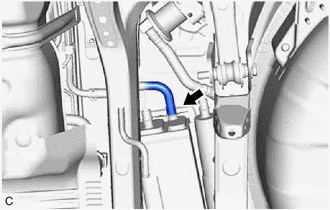

    3. Slide the clip and disconnect the purge line hose from the canister (charcoal canister assembly).
      GTY771731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

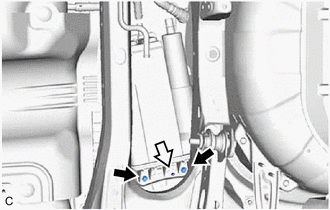

    4. Remove the 2 bolts.
      GTY754471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Clip
    5. Disengage the clip from the canister (charcoal canister assembly).

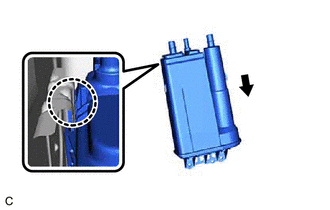

    6. Disengage the claw and remove the canister (charcoal canister assembly) from vehicle body as shown in the illustration.
      GTY755074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the clip from the vehicle body.
      GTY754207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 2 CHARCOAL CANISTER SUB-ASSEMBLY

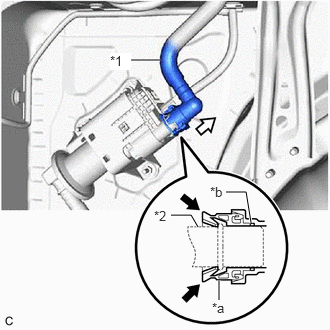

    1. Disconnect the air line tube from the leak detection pump sub-assembly.
      GTY758774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Air Line Tube
      *2 Pipe (Leak Detection Pump Sub-assembly)
      *a Tube Connector
      *b O-ring
      Pinch
      Pull off
      NOTE:
      • Remove any dirt or foreign matter on the tube connector before performing this work.
      • Perform this work by hand. Do not use any tools.
      • Do not forcibly bend, twist or turn the air line tube.
      • Protect the disconnected parts by covering them with plastic bags after disconnecting the air line tube.
      • If the tube connector and pipe (leak detection pump sub-assembly) are stuck, push and pull to release them.
      1. Push the air line tube firmly toward the leak detection pump sub-assembly.
      2. Pinch the tube connector as shown in the illustration.
      3. Pull off the air line tube from the pipe (leak detection pump sub-assembly).

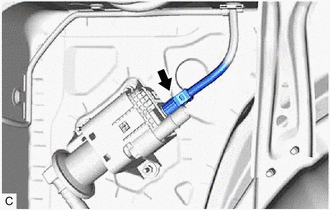

    2. Disconnect the leak detection pump sub-assembly connector.
      GTY755049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

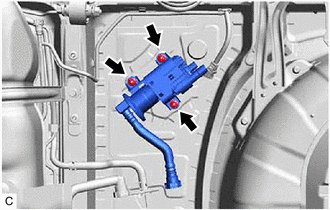

    3. Remove the 3 nuts and No. 2 charcoal canister sub-assembly from the vehicle body.
      GTY755072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE LEAK DETECTION PUMP SUB-ASSEMBLY

    HINT:

    Only perform this procedure when replacement of the leak detection pump sub-assembly is necessary.

    1. Before removing the leak detection pump sub-assembly, clean the No. 2 charcoal canister sub-assembly by blowing air into it to ensure that the No. 2 charcoal canister sub-assembly is free of foreign matter.
      NOTE:
      • Make sure to clean the No. 2 charcoal canister sub-assembly using air only.
      • Do not use gasoline, thinners or solvents.

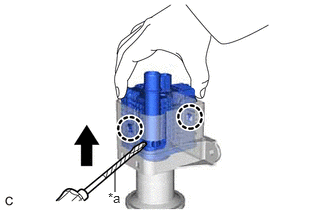

    2. While disengaging the 2 claws as shown in the illustration, push the leak detection pump sub-assembly upwards using a screwdriver with its tip wrapped with protective tape to remove it.
      GTY741065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    3. Check if the No. 2 charcoal canister sub-assembly contains foreign matter such as mud or water.
      1. Visually check that the inside of the No. 2 charcoal canister sub-assembly is free of foreign matter.
        GTY565609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Hold the No. 2 charcoal canister sub-assembly upside down to make sure that it is free of foreign matter.

        If the No. 2 charcoal canister sub-assembly contains foreign matter, replace it.
