Removal [06/2017 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE TAIL EXHAUST PIPE ASSEMBLY
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

    1. Remove the 2 bolts and disconnect the tail exhaust pipe assembly from the center exhaust pipe assembly.
      GTY774128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the tail exhaust pipe assembly from the 2 exhaust pipe supports.
    3. Remove the gasket from the center exhaust pipe assembly.
  2. REMOVE TAIL EXHAUST PIPE ASSEMBLY LH
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

    1. Remove the 2 bolts and disconnect the tail exhaust pipe assembly LH from the center exhaust pipe assembly.
      GTY765997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the tail exhaust pipe assembly LH from the 2 exhaust pipe supports.
    3. Remove the gasket from the center exhaust pipe assembly.
  3. REMOVE FRONT FLOOR COVER LH
    1. Remove the 3 bolts and 4 clips (A).
      GTY764335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the grommet (B) and 6 clips (C) to remove the front floor cover LH.
  4. REMOVE FRONT FLOOR COVER RH
    1. Remove the 3 bolts and 4 clips (A).
      GTY773242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the grommet (B) and 6 clips (C) to remove the front floor cover RH.
  5. REMOVE FRONT CENTER FLOOR BRACE
    1. Remove the 4 bolts and front center floor brace from the vehicle body.
      GTY765995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE CENTER FLOOR CROSSMEMBER BRACE
    1. Remove the 4 bolts and center floor crossmember brace from the vehicle body.
      GTY765994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE CENTER EXHAUST PIPE ASSEMBLY
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

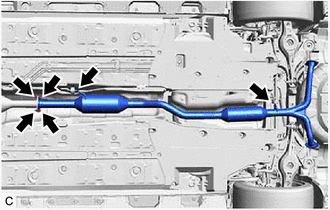

    1. Remove the 2 bolts, 2 nuts and disconnect the center exhaust pipe assembly from the front exhaust pipe assembly (TWC: Rear Catalyst).
      GTY765992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the center exhaust pipe assembly from the 2 exhaust pipe supports.
    3. Remove the gasket from the front exhaust pipe assembly (TWC: Rear Catalyst).

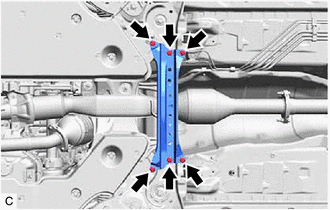

  8. REMOVE BODY MOUNTING PLATE
    1. Remove the 6 bolts and body mounting plate.
      GTY765993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side)
    1. Remove the 2 nuts and No. 1 exhaust pipe support bracket (for Lower Side).
      GTY765991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

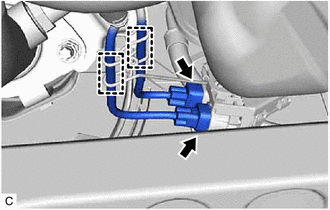

    1. Disconnect the 2 heated oxygen sensor connectors.
      GTY766185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 wire harness clamps.
    3. Remove the 2 bolts, 2 nuts and disconnect the front exhaust pipe assembly (TWC: Rear Catalyst) from the exhaust manifold (TWC: Front Catalyst).
      GTY774126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the front exhaust pipe assembly (TWC: Rear Catalyst) from the exhaust pipe support.
    5. Remove the 2 gaskets from the front exhaust pipe assembly (TWC: Rear Catalyst).
  11. REMOVE HEATED OXYGEN SENSOR (for Bank 2)

    Refer to PROCEDURE - Step 11

  12. REMOVE HEATED OXYGEN SENSOR (for Bank 1)

    Refer to PROCEDURE - Step 5

  13. REMOVE TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY

    HINT:

    • Perform this procedure only when replacement of the tail exhaust pipe baffle sub-assembly is necessary.
    • If the tail exhaust pipe baffle sub-assembly is removed, replace it with a new one.
    • Use the same procedure as for the tail exhaust pipe assembly LH.
    1. Type A
      GTY765980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the tail exhaust pipe baffle sub-assembly.
    2. Type B
      GTY754201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the tail exhaust pipe baffle sub-assembly.
