Installation [03/2017 - 03/2020]: Procedure

  1. INSTALL NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
    1. Install the No. 2 exhaust manifold heat insulator to the exhaust manifold (TWC: Front Catalyst) with the 6 bolts.

      Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

  2. INSTALL EXHAUST MANIFOLD (TWC: Front Catalyst)
    1. Install a new exhaust manifold to head gasket to the cylinder head sub-assembly.
    2. Temporarily install the exhaust manifold (TWC: Front Catalyst), No. 1 upper front floor heat insulator and No. 1 exhaust manifold heat insulator.

      HINT:

      At this time, do not install the parts with bolts or nuts.

    3. Fig 1: Exhaust Manifold Nuts Tightening Sequence
      GTY764362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Using a 12 mm deep socket wrench, temporarily install the exhaust manifold (TWC: Front Catalyst) to the cylinder head sub-assembly with 7 new nuts.

    4. Using the 12 mm deep socket wrench, tighten the 7 nuts in the order shown in the illustration.

      Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

  3. INSTALL MANIFOLD STAY
    1. Temporarily install the manifold stay to the exhaust manifold (TWC: Front Catalyst) and cylinder block sub-assembly with the bolt and nut.
      Fig 2: Manifold Stay Bolt And Nut Tightening Sequence
      GTY745060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the bolt and nut in the order shown in the illustration.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  4. INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    1. Using a 10 mm union nut wrench, install the No. 1 exhaust manifold heat insulator to the exhaust manifold (TWC: Front Catalyst) with the 5 bolts.

      Specified tightening torque

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      HINT:

      GTY768861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length
  5. INSTALL NO. 1 UPPER FRONT FLOOR HEAT INSULATOR
    1. Using a 10 mm union nut wrench, install the No. 1 upper front floor heat insulator to the vehicle body with the 2 nuts.

      Specified tightening torque

      Torque: 4.9 N*m (50 kgf*cm, 43 in.*lbf)

      HINT:

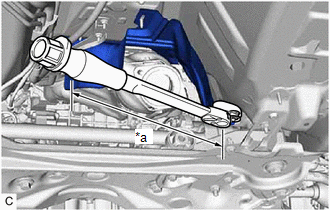

      GTY774679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length
  6. INSTALL WIRE HARNESS CLAMP BRACKET
    1. Install the wire harness clamp bracket with the bolt.

      Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

  7. INSTALL AIR FUEL RATIO SENSOR (for Sensor 1)

    Refer to INSTALLATION [03/2017 - ]

  8. INSTALL FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 5 [06/2017 - 09/2019] , or refer to PROCEDURE - Step 5 [09/2019 - 10/2020]

  9. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to INSTALLATION [03/2017 - ]

  10. INSTALL FRONT LOWER NO. 1 FLOOR HEAT INSULATOR

    Refer to PROCEDURE - Step 4

  11. INSTALL FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
    1. Install 2 new gaskets to the front exhaust pipe assembly (TWC: Rear Catalyst).
    2. Connect the front exhaust pipe assembly (TWC: Rear Catalyst) to the 2 exhaust pipe supports.
    3. Install the front exhaust pipe assembly (TWC: Rear Catalyst) to the exhaust manifold (TWC: Front Catalyst) and center exhaust pipe assembly with 2 new bolts and 2 new nuts.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

    4. Connect the air fuel ratio sensor (for sensor 2) connector.
    5. Engage the wire harness clamp.
  12. INSTALL CENTER FLOOR CROSSMEMBER BRACE

    See step  6 [03/2017 - 06/2017], or see step  7 [06/2017 - 03/2020]

  13. INSTALL FRONT CENTER FLOOR BRACE

    See step  7 [03/2017 - 06/2017], or see step  8 [06/2017 - 03/2020]

  14. INSTALL FRONT FLOOR COVER LH

    See step  8 [03/2017 - 06/2017], or see step  9 [06/2017 - 03/2020]

  15. INSTALL FRONT FLOOR COVER RH

    See step  9 [03/2017 - 06/2017], or see step  10 [06/2017 - 03/2020]

  16. INSPECT FOR EXHAUST GAS LEAK

    See step  10 [03/2017 - 06/2017], or see step  11 [06/2017 - 03/2020]

  17. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 67 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 67 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 67 [08/2018 - 03/2020]

  18. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 68 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 68 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 68 [08/2018 - 03/2020]

  19. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 69 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 69 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 69 [08/2018 - 03/2020]

  20. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 70 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 70 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 70 [08/2018 - 03/2020]
