Removal [10/2020 - ]: Procedure

  1. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

    Refer to REMOVAL [10/2020 - ]

  2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 22

  3. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 7 Inch Display)

    Refer to PROCEDURE - Step 25

  4. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 9 Inch Display)

    Refer to PROCEDURE - Step 26

  5. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 27

  6. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 7 Inch Display)

    Refer to PROCEDURE - Step 8

  7. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 9 Inch Display)

    Refer to PROCEDURE - Step 9

  8. REMOVE NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 29

  9. REMOVE NO. 1 CLEARANCE WARNING BUZZER
    1. Disengage the clamp.

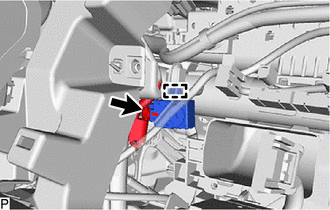

      GTY991629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the No. 1 clearance warning buzzer.
