Removal [10/2020 - ]: Procedure

  1. PRECAUTION (w/o Navigation System)
    NOTE:
    • When replacing the radio and display receiver assembly, always replace it with a new one. If a radio and display receiver assembly which was installed to another vehicle is used, the following may occurs:
      • A communication malfunction DTC may be stored.
      • The radio and display receiver assembly may not operate normally.

    Refer to PRECAUTION [10/2020 - ]

  2. PRECAUTION (w/ Navigation System)
    NOTE:
    • When replacing the radio and display receiver assembly or navigation ECU, always replace it with a new one. If a radio and display receiver assembly or navigation ECU which was installed to another vehicle is used, the following may occur:
      • A communication malfunction DTC may be stored.
      • The radio and display receiver assembly or navigation ECU may not operate normally.
    • After replacing the radio and display receiver assembly, if "New software is not compatible with the system. Contact your dealer." is displayed on the multi-display, update the software of the navigation ECU.

    Refer to PRECAUTION [10/2020 - ]

  3. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

    Refer to REMOVAL [10/2020 - ]

  4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 22

  5. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 7 Inch Display)

    Refer to PROCEDURE - Step 25

  6. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 9 Inch Display)

    Refer to PROCEDURE - Step 26

  7. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 27

  8. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 7 Inch Display)
    1. Disengage the clamp.

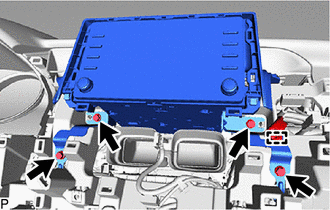

      GTY991360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts.
    3. Disengage the 2 clips and 2 claws as shown in the illustration.

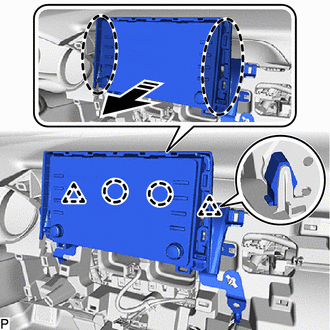

      GTY990672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    4. Disengage the 2 guides as shown in the illustration.

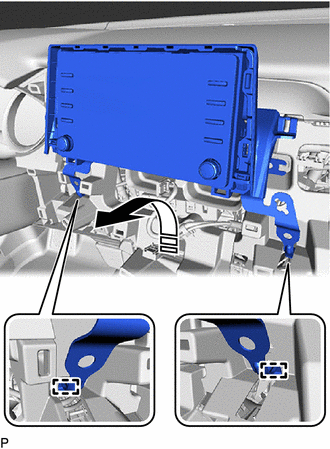

      GTY990353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    5. Disconnect each connector and remove the radio and display receiver assembly with bracket.
  9. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 9 Inch Display)
    1. Disengage the clamp.

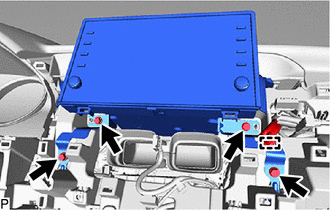

      GTY991285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts.
    3. Disengage the 5 clips as shown in the illustration.

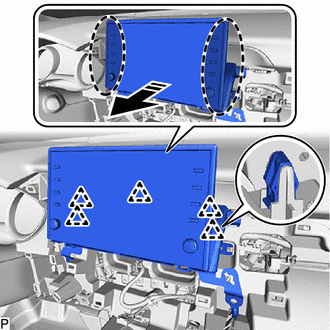

      GTY991012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    4. Disengage the 2 guides as shown in the illustration.

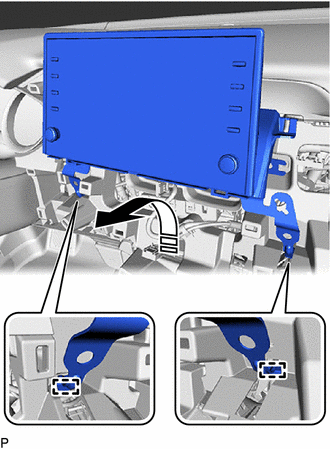

      GTY991546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    5. Disconnect each connector and remove the radio and display receiver assembly with bracket.
  10. REMOVE CENTER INSTRUMENT CLUSTER FINISH UPPER PANEL ASSEMBLY (for 7 Inch Display)
    1. Disengage the 3 clips to remove the center instrument cluster finish upper panel assembly as shown in the illustration.

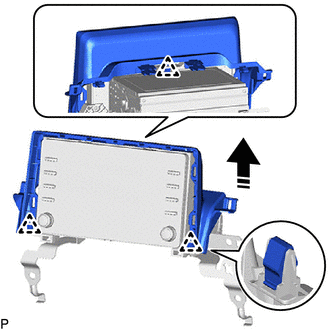

      GTY990377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  11. REMOVE NO. 2 RADIO RECEIVER BRACKET
    1. Remove the 2 screws and No. 2 radio receiver bracket.

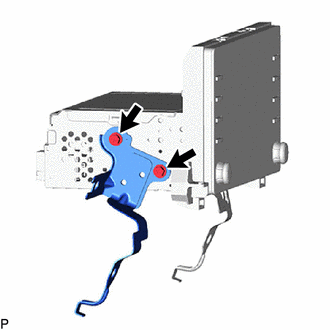

      GTY991274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

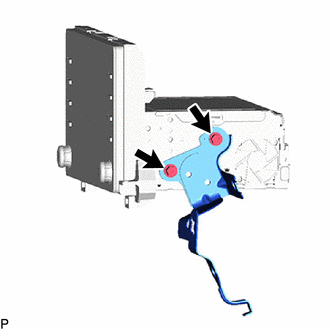

  12. REMOVE NO. 1 RADIO RECEIVER BRACKET
    1. Remove the 2 screws and No. 1 radio receiver bracket.
      GTY991273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY
