Installation [10/2014 - ]: Procedure

INSTALL SHIFT LEVER SUPPORT
1. Install the shift lever support to the body with the 4 bolts in the sequence shown in the illustration.

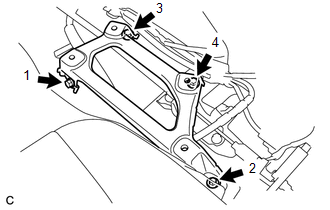

  Fig 1: Shift Lever Support Tightening Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

INSTALL LOWER SHIFT LEVER ASSEMBLY

NOTE:

Check that the park/neutral position switch assembly and the shift lever are in neutral.

Install the lower shift lever assembly to the shift lever support with the 4 bolts in the sequence shown in the illustration.

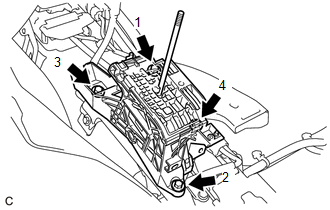

Fig 2: Lower Shift Lever Assembly Tightening Sequence
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)
Connect the transmission control switch connector.
Connect the shift lock control ECU connector.
Connect the 2 clamps to the lower shift lever assembly.

Slide the slider of the transmission control cable assembly in the direction indicated by the arrow and pull the lock piece outward.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Slider
*2	Lock Piece
*a	Slide
*b	Pull

Install the end of the transmission control cable assembly to the lower shift lever assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Lock Piece

NOTE:

Check that the lock piece is pulled up.
Install the cable end all the way to the base of the pin.

Push the lock piece into the adjuster case.
NOTE:
- Check that the park/neutral position switch assembly and the shift lever are in neutral.
- Securely push in the lock piece until the slider lock is engaged.

INSTALL NO. 1 CONSOLE BOX DUCT
Refer to PROCEDURE - Step 7 and PROCEDURE - Step 7
INSTALL NO. 1 CONSOLE BOX MOUNTING BRACKET
1. Install the No. 1 console box mounting bracket to the lower shift lever assembly with the screw.
INSTALL FLOOR CARPET BRACKET LH
Refer to PROCEDURE - Step 8 and PROCEDURE - Step 8
INSTALL FRONT CONSOLE BOX
Refer to PROCEDURE - Step 3
INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 12
INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 1
INSTALL GLOVE COMPARTMENT PLATE
Refer to PROCEDURE - Step 14
INSTALL INSTRUMENT SIDE PANEL RH
Refer to PROCEDURE - Step 15
INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 16
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
Refer to PROCEDURE - Step 42 . Refer to PROCEDURE - Step 44
INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
Refer to PROCEDURE - Step 43 . Refer to PROCEDURE - Step 45
INSTALL FRONT DOOR SCUFF PLATE RH
Refer to PROCEDURE - Step 44 . Refer to PROCEDURE - Step 46
INSTALL LOWER NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 35
CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 36
INSTALL INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 37
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 32 . Refer to PROCEDURE - Step 34
INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 33 . Refer to PROCEDURE - Step 35
INSTALL FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 34 . Refer to PROCEDURE - Step 36
INSTALL REAR CONSOLE BOX ASSEMBLY
(Refer to INSTALLATION [10/2014 - 10/2015] or INSTALLATION [10/2015 - ] )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [10/2014 - 10/2015] or INITIALIZATION [10/2015 - ] ).
INSPECT SHIFT LEVER POSITION
See step 1
PERFORM DIAGNOSTIC SYSTEM CHECK
(Refer to DTC CHECK / CLEAR [10/2014 - ] )
INSPECT SRS WARNING LIGHT
(Refer to DIAGNOSIS SYSTEM [10/2014 - ] )
