Installation [10/2014 - ]: Procedure

INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

Check that the engine switch is off.
Check that the cable is disconnected from the negative (-) battery terminal.
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

Connect the airbag connector to the lower No. 2 instrument panel airbag assembly.

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

NOTE:

When connecting any airbag connector, take care not to damage the airbag wire harness.

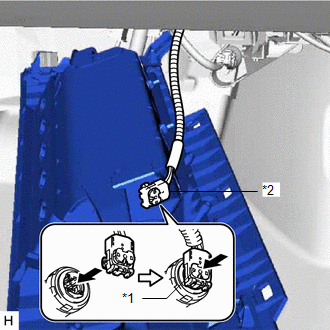

TEXT IN ILLUSTRATION

*1	Airbag Connector Lock
*2	Airbag Connector

Push in the airbag connector lock to install the airbag connector.
Engage the 3 claws to temporarily install the lower No. 2 instrument panel airbag assembly.
Install the 3 bolts.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

NOTE:
Confirm that the lower No. 2 instrument panel airbag assembly is installed securely without any excessive gaps and is not protruding outward.

INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 16
INSTALL GLOVE COMPARTMENT PLATE
Refer to PROCEDURE - Step 14
INSTALL INSTRUMENT SIDE PANEL RH
Refer to PROCEDURE - Step 15
CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
Refer to PROCEDURE - Step 42 Refer to PROCEDURE - Step 44
INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
HINT:

Use the same procedure for the RH side and LH side (Refer to PROCEDURE - Step 33 Refer to PROCEDURE - Step 35 ).
INSTALL FRONT DOOR SCUFF PLATE RH
HINT:

Use the same procedure for the RH side and LH side (Refer to PROCEDURE - Step 34 Refer to PROCEDURE - Step 36 ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [10/2014 - 10/2015] Refer to INITIALIZATION [10/2015 - ] ).
PERFORM DIAGNOSTIC SYSTEM CHECK
(Refer to DTC CHECK / CLEAR [10/2014 - ] )
INSPECT SRS WARNING LIGHT
(Refer to DIAGNOSIS SYSTEM [10/2014 - ] )
