Removal [10/2014 - 10/2015]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)
    1. Disengage each clamp under the front seat assembly LH.
    2. Disengage the clamp.
      GTY473749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the nut and front seat inner belt assembly LH.
  3. DISCONNECT FRONT SEATBACK BOARD SUB-ASSEMBLY RH (for Front Passenger Side)

    HINT:

    Use the same procedure described for the LH side (Refer to PROCEDURE - Step 2 ).

  4. REMOVE FRONT SEAT INNER CUSHION SHIELD RH (for Front Passenger Side)

    HINT:

    Use the same procedure described for the LH side (Refer to PROCEDURE - Step 3 ).

  5. REMOVE FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)
    1. Disengage the guide and disconnect the front seat cushion cover sub-assembly RH.

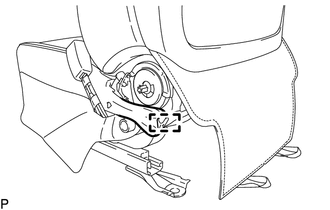

      GTY473750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector under the front seat assembly RH.
    3. Disengage each clamp under the front seat assembly RH.
    4. for 4 Way Seat Type:

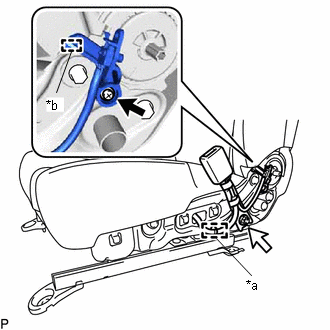

      GTY548571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Clamp
      *b Guide
      1. Disengage the clamp.
      2. Remove the screw.
      3. Disengage the guide and disconnect the recline limit switch.
      4. Remove the nut and front seat inner belt assembly RH.
    5. for 8 Way Seat Type:

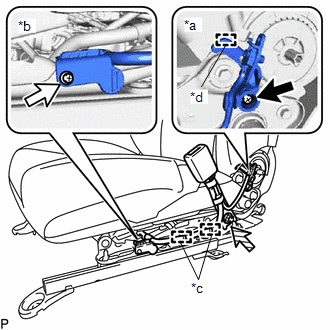

      GTY556998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Recline Limit Switch
      *b Lift Limit Switch
      *c Clamp
      *d Guide
      1. Disengage each clamp.
      2. Remove the screw.
      3. Disengage the guide and disconnect the recline limit switch.
      4. Remove the screw and disconnect the lift limit switch.
      5. Remove the nut and front seat inner belt assembly RH.
