Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  2. DISCONNECT FRONT SEATBACK BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2 Refer to PROCEDURE - Step 2

  3. REMOVE FRONT SEAT INNER CUSHION SHIELD

    Refer to PROCEDURE - Step 3 Refer to PROCEDURE - Step 3

  4. REMOVE FRONT SEAT CUSHION SHIELD (w/o Seat Position Memory System)

    Refer to PROCEDURE - Step 9 Refer to PROCEDURE - Step 9

  5. REMOVE FRONT SEAT CUSHION SHIELD (w/ Seat Position Memory System)

    Refer to PROCEDURE - Step 10 Refer to PROCEDURE - Step 10

  6. REMOVE FRONT SEATBACK BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20 Refer to PROCEDURE - Step 20

  7. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

    Refer to PROCEDURE - Step 7

  8. REMOVE FRONT SEAT AIRBAG ASSEMBLY
    WARNING:

    When storing the front seat airbag assembly, keep the airbag deployment side facing upward.

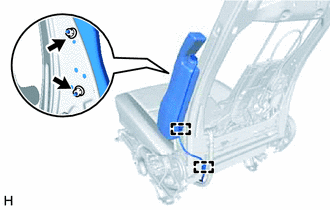

    1. Disengage the 2 clamps.
      GTY372432Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    2. Remove the 2 nuts and front seat airbag assembly.
      WARNING:
      • The nuts must not be reused.
      • Make sure that the front seatback frame sub-assembly is not deformed. If it is, replace it with a new one.
