Removal [10/2014 - ]: Procedure

(Refer to REMOVAL [10/2014 - ] )

Refer to PROCEDURE - Step 34 Refer to PROCEDURE - Step 34

Refer to PROCEDURE - Step 15

Refer to PROCEDURE - Step 2

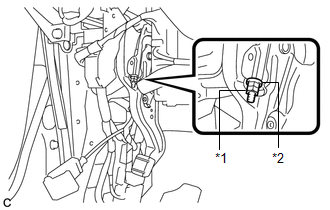

1. Remove the lock nut and loosen the adjusting nut.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   TEXT IN ILLUSTRATION



   *1	Lock Nut
   *2	Adjusting Nut

   NOTE:

   If the lock nut is removed or loosened, replace the lock nut with a new one.

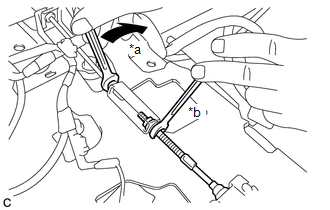

1. Separate the No. 4 parking brake cable assembly from the parking brake control pedal assembly as shown in the illustration.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   TEXT IN ILLUSTRATION



   *a	Turn
   *b	Hold

1. Turn back the floor carpet.

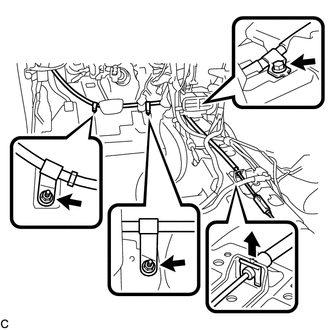

2. Remove the clip from the No. 1 parking brake cable assembly.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

3. Remove the bolt and 2 nuts, and separate the No. 1 parking brake cable assembly.

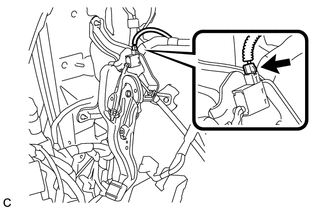

4. Disconnect the parking brake switch assembly connector.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

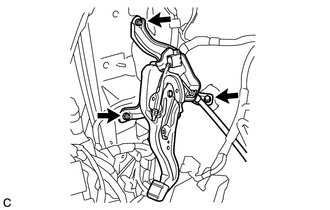

5. Remove the bolt, 2 nuts and parking brake control pedal assembly.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
