Removal [10/2014 - ]: Procedure

  1. REMOVE REAR CONSOLE BOX ASSEMBLY

    (Refer to REMOVAL [10/2014 - 10/2015] Refer to REMOVAL [10/2015 - ] )

  2. REMOVE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
    1. Disconnect the connector.

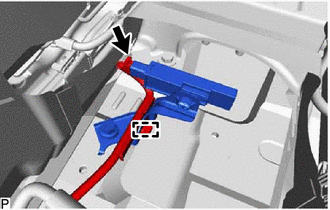

      GTY369896Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    2. Disengage the clamp.
    3. Remove the bolt.

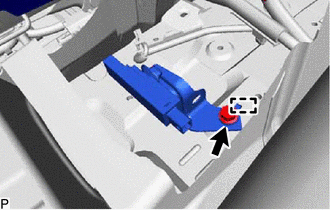

      GTY370354Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    4. Disengage the guide to remove the No. 1 indoor electrical key antenna assembly.
      NOTE:

      Be careful when removing the No. 1 indoor electrical key antenna assembly. If the No. 1 indoor electrical key antenna assembly is dropped, replace it with a new one.
