Installation [10/2014 - ]: Procedure

  1. INSTALL PARKING BRAKE CONTROL PEDAL ASSEMBLY
    1. Install the parking brake control pedal assembly with the bolt and 2 nuts.

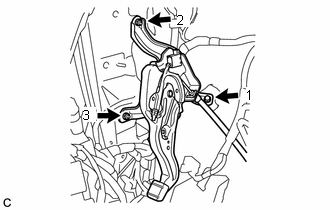

      Fig 1: Parking Brake Control Pedal Assembly Tightening Sequence
      GTY549277Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

      Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

      NOTE:

      Tighten the bolt and 2 nuts in the order shown in the illustration.

    2. Connect the parking brake switch assembly connector.
    3. Install the No. 1 parking brake cable assembly with the bolt and 2 nuts.

      Bolt

      Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

      Nut

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    4. Install the clip to the No. 1 parking brake cable assembly.
    5. Install the floor carpet.
  2. CONNECT NO. 4 PARKING BRAKE CABLE ASSEMBLY

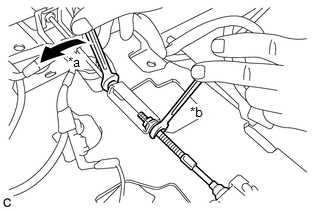

    1. Connect the No. 4 parking brake cable assembly to the parking brake control pedal assembly as shown in the illustration.
      GTY567499Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      TEXT IN ILLUSTRATION

      *a Turn
      *b Hold

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  3. INSTALL NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. INSTALL AIRBAG ECU ASSEMBLY

    Refer to PROCEDURE - Step 1

  5. INSTALL FLOOR CARPET BRACKET RH

    Refer to PROCEDURE - Step 12 Refer to PROCEDURE - Step 12

  6. INSTALL SHIFT LEVER SUPPORT

    (Refer to INSTALLATION [10/2014 - ] )

  7. ADJUST PARKING BRAKE PEDAL TRAVEL

    Refer to PROCEDURE - Step 2

  8. INSPECT BRAKE WARNING LIGHT

    Refer to PROCEDURE - Step 3
