Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY

    Refer to REMOVAL [10/2014 - ]

  2. DISCONNECT FRONT SEATBACK BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2 Refer to PROCEDURE - Step 2

  3. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

    Refer to PROCEDURE - Step 7 Refer to PROCEDURE - Step 7

  4. REMOVE RECLINING POWER SEAT SWITCH KNOB

    Refer to PROCEDURE - Step 8 Refer to PROCEDURE - Step 8

  5. REMOVE FRONT SEAT CUSHION SHIELD

    Refer to PROCEDURE - Step 9 Refer to PROCEDURE - Step 9

  6. REMOVE FRONT POWER SEAT SWITCH

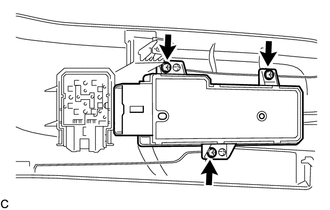

    1. Remove the 3 screws and front power seat switch from the front seat cushion shield.
      GTY375378Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
