Removal [06/2016 - ]: Procedure

  1. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 12 [06/2016 - 03/2017] , or refer to PROCEDURE - Step 12 [03/2017 - ]

  2. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

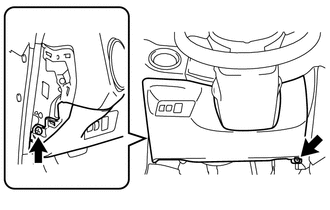

    1. Remove the 2 screws.
      GTY387137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

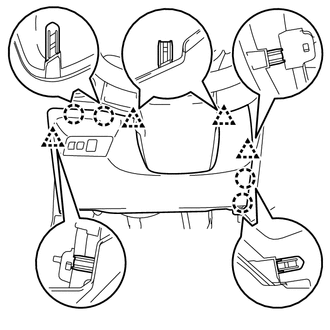

    2. Disengage the 4 clips.
      GTY387136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 4 claws and separate the No. 1 instrument panel under cover sub-assembly.
    4. Disconnect each connector and remove the No. 1 instrument panel under cover sub-assembly.
  3. REMOVE SWITCH BASE
    1. Disengage the 4 claws and remove the switch base.
      GTY390074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE LIGHT CONTROL RHEOSTAT
    1. Disengage the 2 claws to remove the light control rheostat.
      GTY390072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
