Removal [06/2016 - 03/2017]: Procedure

  1. REMOVE INSTRUMENT PANEL ORNAMENT (w/ Large Ornament Panel)

    Refer to PROCEDURE - Step 4

  2. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/o Large Ornament Panel)

    Refer to PROCEDURE - Step 5

  3. REMOVE METER HOOD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 13

  4. REMOVE UPPER INSTRUMENT PANEL METER ORNAMENT

    Refer to PROCEDURE - Step 14

  5. REMOVE COMBINATION METER ASSEMBLY

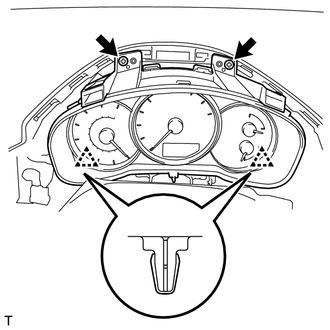

    1. Remove the 2 screws.
      GTY392086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clips.

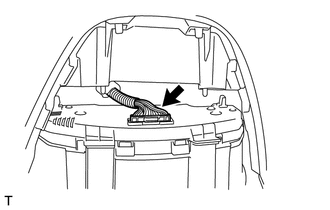

    3. Disconnect the connector and remove the combination meter assembly.
      GTY386877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
