Installation [12/2012 - ]: Procedure

  1. INSTALL REAR NO. 1 DIFFERENTIAL MOUNT CUSHION (for AWD)

    Refer to PROCEDURE - Step 1

  2. INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY
    1. Place wooden blocks or plate lift attachments on an engine lifter, and then set the rear suspension member sub-assembly so that the attachments are in the positions shown in the illustration.

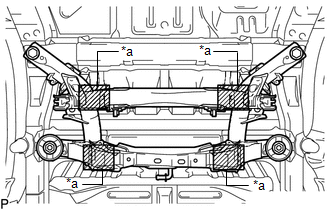

      GTY377343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Attachment Placement Positions
      NOTE:
      • Place the wooden blocks or plate lift attachments so that the rear suspension member sub-assembly is level.
      • As the rear suspension member sub-assembly is very heavy, be sure to support it securely.
    2. Install the rear suspension member and 2 rear upper body mounting cushions with the 2 bolts and 2 nuts.

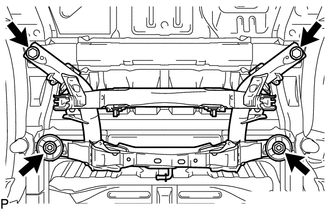

      GTY365806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 125 N*m (1275 kgf*cm, 92 ft.*lbf)

  3. INSTALL REAR DIFFERENTIAL CARRIER ASSEMBLY (for AWD)

    Refer to INSTALLATION [12/2012 - 11/2013] Refer to INSTALLATION [11/2013 - ]

  4. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for AWD)

    Refer to INSTALLATION [12/2012 - ]

  5. TEMPORARILY INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH
    1. Temporarily install the upper control arm to the rear suspension member with the bolt and nut.
  6. TEMPORARILY INSTALL REAR UPPER CONTROL ARM ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  7. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

    See step  1

  8. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  9. INSTALL REAR LOWER COIL SPRING INSULATOR LH

    See step  2

  10. INSTALL REAR LOWER COIL SPRING INSULATOR RH

    HINT:

    Use the same procedure described for the LH side.

  11. INSTALL REAR UPPER COIL SPRING INSULATOR LH

    See step  1

  12. INSTALL REAR UPPER COIL SPRING INSULATOR RH

    HINT:

    Use the same procedure described for the LH side.

  13. INSTALL REAR COIL SPRING LH

    See step  3

  14. INSTALL REAR COIL SPRING RH

    HINT:

    Use the same procedure described for the LH side.

  15. TEMPORARILY INSTALL REAR SHOCK ABSORBER ASSEMBLY LH

    See step  2

  16. TEMPORARILY INSTALL REAR SHOCK ABSORBER ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  17. INSTALL REAR AXLE CARRIER SUB-ASSEMBLY LH
    1. Install the rear axle carrier to the rear upper control arm with the bolt and nut.

      Torque: 90 N*m (918 kgf*cm, 66 ft.*lbf)

      NOTE:

      Since a stopper nut is used, tighten the bolt.

  18. INSTALL REAR AXLE CARRIER SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  19. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

    See step  1

  20. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  21. CONNECT REAR TRAILING ARM ASSEMBLY LH
    1. Connect the rear trailing arm to the rear axle carrier with the 2 bolts.

      Torque: 200 N*m (2039 kgf*cm, 148 ft.*lbf)

  22. CONNECT REAR TRAILING ARM ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  23. INSTALL REAR STABILIZER BAR

    See step  2

  24. INSTALL REAR STABILIZER LINK ASSEMBLY LH

    See step  7

  25. INSTALL REAR STABILIZER LINK ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  26. INSTALL REAR SUSPENSION MEMBER BRACE LH

    See step  11

  27. INSTALL REAR SUSPENSION MEMBER BRACE RH

    HINT:

    Use the same procedure described for the LH side.

  28. INSTALL REAR SUSPENSION ARM COVER LH (w/ Cover)

    See step  11

  29. INSTALL REAR SUSPENSION ARM COVER RH (w/ Cover)

    HINT:

    Use the same procedure described for the LH side.

  30. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY LH (for 2WD)

    Refer to PROCEDURE - Step 1

  31. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY RH (for 2WD)

    HINT:

    Use the same procedure described for the LH side.

  32. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY LH (for AWD)

    Refer to PROCEDURE - Step 2

  33. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY RH (for AWD)

    HINT:

    Use the same procedure described for the LH side.

  34. INSTALL PARKING BRAKE ASSEMBLY

    Refer to REASSEMBLY [12/2012 - ]

  35. INSTALL REAR DISC

    Refer to PROCEDURE - Step 1

  36. CONNECT REAR DISC BRAKE CALIPER ASSEMBLY LH

    Refer to PROCEDURE - Step 9

  37. CONNECT REAR DISC BRAKE CALIPER ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  38. CONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY

    Refer to INSTALLATION [12/2012 - ]

  39. CONNECT NO. 2 PARKING BRAKE CABLE ASSEMBLY

    HINT:

    Use the same procedure described for the No. 3 parking brake cable assembly.

  40. CONNECT SKID CONTROL SENSOR WIRE LH (for 2WD)

    Refer to INSTALLATION [12/2012 - 08/2016] Refer to INSTALLATION [08/2016 - ]

  41. CONNECT SKID CONTROL SENSOR WIRE RH (for 2WD)

    HINT:

    Use the same procedure described for the LH side.

  42. CONNECT REAR SPEED SENSOR LH (for AWD)

    Refer to INSTALLATION [12/2012 - ]

  43. CONNECT REAR SPEED SENSOR RH (for AWD)

    HINT:

    Use the same procedure described for the LH side.

  44. INSTALL REAR AXLE SHAFT NUT LH (for AWD)

    Refer to PROCEDURE - Step 3

  45. INSTALL REAR AXLE SHAFT NUT RH (for AWD)

    HINT:

    Use the same procedure described for the LH side.

  46. STABILIZE SUSPENSION

    See step  3

  47. TIGHTEN REAR SHOCK ABSORBER ASSEMBLY LH

    See step  4

  48. TIGHTEN REAR SHOCK ABSORBER ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  49. TIGHTEN REAR UPPER CONTROL ARM ASSEMBLY LH

    See step  3

  50. TIGHTEN REAR UPPER CONTROL ARM ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  51. TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

    See step  9

  52. TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  53. TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

    See step  12

  54. TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  55. INSTALL REAR WHEEL

    Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

  56. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

    Refer to ADJUSTMENT [12/2012 - 08/2017] Refer to ADJUSTMENT [08/2017 - ]

  57. INSPECT SPEED SENSOR SIGNAL

    Refer to TEST MODE PROCEDURE [12/2012 - 10/2015] Refer to TEST MODE PROCEDURE [10/2015 - 08/2016] Refer to TEST MODE PROCEDURE [08/2016 - ]
