Installation [12/2012 - ]: Procedure

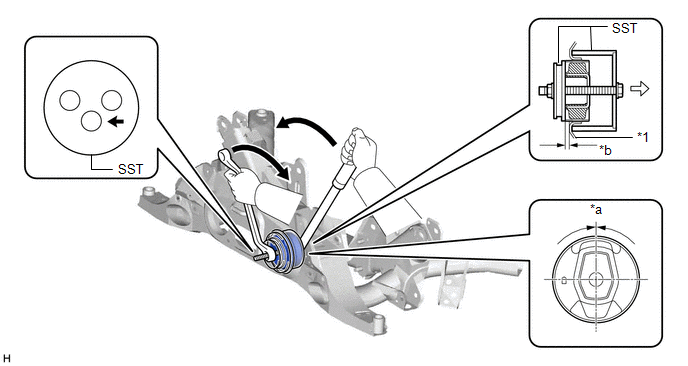

1. Using SST, install a new rear No. 1 differential mount cushion.
   • SST: 09316-1201009570-24011

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rear Suspension Member Sub-assembly	-	-
   *a	0° +/- 3°	*b	5.0 to 6.0 mm (0.197 to 0.236 in.)
   	Front of Vehicle	-	-

   NOTE:

   • Make sure that the differential mount cushion is aligned within 3° from the center.
   • Be sure to use the correct combination of SST.
   • Before using SST, apply grease to SST bolt.
   • Temporarily install the rear No. 1 differential mount cushion to the rear suspension member sub-assembly in order to prevent it from tilting, and then install SST.
   • Make sure that SST contacts the entire circumference of the rear No. 1 differential mount cushion.
   • Do not tilt the bolts of SST.

Refer to INSTALLATION [12/2012 - ]

Refer to INSTALLATION [12/2012 - 11/2013] , or refer to INSTALLATION [11/2013 - ]
