Installation [11/2015 - ]: Procedure
- INSTALL FRONT DISC
- INSTALL FRONT DISC BRAKE CYLINDER MOUNTING
- Install the front disc brake cylinder mounting to the steering knuckle with the 2 bolts.
Torque: 107 N*m (1091 kgf*cm, 79 ft.*lbf)
- Install the front disc brake cylinder mounting to the steering knuckle with the 2 bolts.
- INSTALL FRONT DISC BRAKE BUSHING DUST BOOT
- Apply a light layer of lithium soap base glycol grease to the entire circumference of 2 new front disc brake bushing dust boots.
HINT:
Apply more than 0.3 g (0.01 oz) of lithium soap base glycol grease to each front disc brake bushing dust boot.
Lithium Soap Base Glycol Grease - Install the 2 front disc brake bushing dust boots to the front disc brake cylinder mounting.
- Apply a light layer of lithium soap base glycol grease to the entire circumference of 2 new front disc brake bushing dust boots.
- INSTALL FRONT DISC BRAKE CYLINDER SLIDE PIN
- Apply a light layer of lithium soap base glycol grease to the contact surface of the front disc brake cylinder slide pin (lower side).
Lithium Soap Base Glycol Grease - Install a new front disc brake cylinder slide bushing to the front disc brake cylinder slide pin (lower side).

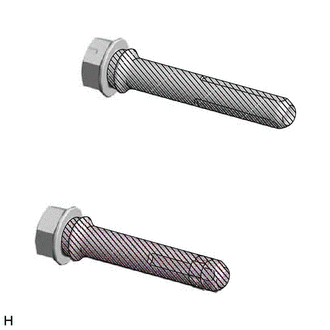

- Apply a light layer of lithium soap base glycol grease to the sliding part and the sealing surfaces of the 2 front disc brake cylinder slide pins.
Lithium Soap Base Glycol Grease - Install the 2 front disc brake cylinder slide pins to the front disc brake cylinder mounting.
- Push each front disc brake cylinder slide pin into the front disc brake bushing dust boot to engage the pin to the boot.
- Apply a light layer of lithium soap base glycol grease to the contact surface of the front disc brake cylinder slide pin (lower side).
- INSTALL FRONT DISC BRAKE PAD SUPPORT PLATE
- Install the 4 front disc brake pad support plates to the front disc brake cylinder mounting.NOTE:
Be sure to install each front disc brake pad support plate in the correct position and direction.
- Install the 4 front disc brake pad support plates to the front disc brake cylinder mounting.
- INSTALL FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT NOTE:
- When replacing worn front disc brake pads, the front disc brake anti-squeal shims and front disc brake pad wear indicator plates must be replaced together with the front disc brake pads.
- Do not apply disc brake grease to the lining surface of the brake pad.
- Install the front disc brake pad wear indicator plates in the correct position and direction.
- Install the front disc brake anti-squeal shims in the correct position and direction.
- Apply disc brake grease to both sides of each front No. 1 disc brake anti-squeal shim as shown in the illustration.
*A Inside of the Vehicle *B Outside of the Vehicle Disc Brake Grease - Install the front No. 1 disc brake anti-squeal shim and front No. 2 disc brake anti-squeal shim to each front disc brake pad.

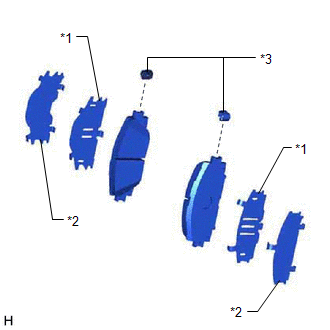

*1 Front No. 1 Disc Brake Anti-squeal Shim *2 Front No. 2 Disc Brake Anti-squeal Shim *3 Front Disc Brake Pad Wear Indicator Plate - Install the front disc brake pad wear indicator plate to each front disc brake pad.
- INSTALL FRONT DISC BRAKE PAD
- Install the 2 front disc brake pads to the front disc brake cylinder mounting.NOTE:
- Keep the friction surfaces of the front disc brake pads and front disc free from oil and grease.
- Install the front disc brake pad so that the pad wear indicator plate is mounted on the upper side of the vehicle.
- Install the 2 front disc brake pads to the front disc brake cylinder mounting.
- INSTALL FRONT DISC BRAKE CYLINDER ASSEMBLY
- Hold each front disc brake cylinder slide pin and install the front disc brake cylinder assembly to the front disc brake cylinder mounting with the 2 bolts.
Torque: 34.3 N*m (350 kgf*cm, 25 ft.*lbf)
- Hold each front disc brake cylinder slide pin and install the front disc brake cylinder assembly to the front disc brake cylinder mounting with the 2 bolts.
- CONNECT FRONT FLEXIBLE HOSE
- Connect the front flexible hose to the front disc brake cylinder assembly with a new union bolt and a new gasket.
Torque: 33.3 N*m (340 kgf*cm, 25 ft.*lbf)
NOTE:Install the front flexible hose lock securely into the lock hole in the front disc brake cylinder assembly.
- Connect the front flexible hose to the front disc brake cylinder assembly with a new union bolt and a new gasket.
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
- Connect the reservoir level switch connector.
- Connect the cable to the negative (-) auxiliary battery terminal.
Refer to PROCEDURE - Step 2 [11/2015 - 12/2018] , or refer to PROCEDURE - Step 2 [12/2018 - ]
- Perform the following procedure if air bleeding is not necessary:
- Turn the power switch on (READY).
- Depress the brake pedal and release it.
- Clear the DTCs.
Refer to DTC CHECK / CLEAR [11/2015 - 12/2018] , or refer to DTC CHECK / CLEAR [12/2018 - ]
- BLEED BRAKE LINE
Refer to BLEEDING [11/2015 - ]
- INSTALL FRONT WHEEL
Refer to PROCEDURE - Step 1 [11/2015 - 12/2018] , or refer to PROCEDURE - Step 1 [12/2018 - ]
