Installation [09/2016 - ]: Procedure
- INSTALL COMBINATION METER ASSEMBLY
- Connect the 2 connectors.
- Engage the clamp.
- Install the combination meter assembly with the 4 screws.
- INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

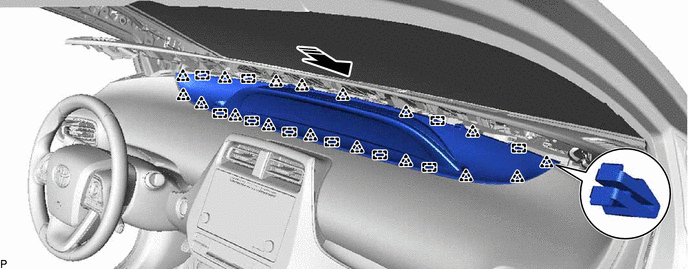

- Engage the 10 guides and 17 clips to install the instrument cluster finish panel assembly as shown in the illustration.

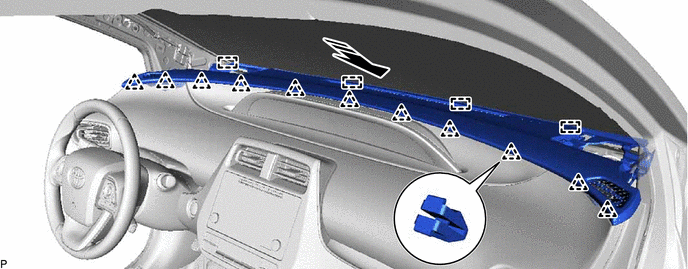

Install in this Direction - - - Engage the 4 guides and 11 clips to install the upper instrument panel assembly as shown in the illustration.
Install in this Direction - - NOTE:- Do not damage the upper instrument panel assembly.
- Do not allow the wire harnesses to interfere with the surrounding parts.
- Install the 2 clips.
- Engage the 10 guides and 17 clips to install the instrument cluster finish panel assembly as shown in the illustration.
- INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 5
- INSTALL FRONT PILLAR GARNISH RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 45 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 41 [05/2019 - 07/2020] , or refer to PROCEDURE - Step 43 [07/2020 - ]
- INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
Refer to PROCEDURE - Step 1
- INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 9
- INSTALL FRONT PILLAR GARNISH LH
Refer to PROCEDURE - Step 45 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 41 [05/2019 - 07/2020] , or refer to PROCEDURE - Step 43 [07/2020 - ]
- INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 1
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 2 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 2 [05/2019 - ]
